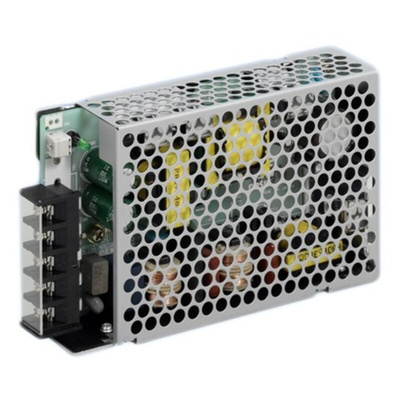

PBA75F-3R3-N, Cosel, 49.5W Embedded Switch Mode Power Supply SMPS, 3.3V dc, Enclosed, Источник питания

0102092
Номер производителя: PBA75F-3R3-NПроизводитель: Cosel
Цена за шт.
35238.00 руб. (С НДС) *
Количество 5+ 10+ 25+ 50+
Цена 34155.00 руб. 33132.00 руб. 32010.00 руб. 30483.00 руб.

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

PBA Series with Single 50-300W output

The PBA series of switch mode power supplies from Cosel are lightweight and incredibly compact. They are 35% to 65% smaller in volume than conventional products of the same type. With a universal input of 85 V ac to 264 V ac, the PBA series of switch mode power supplies is versatile.

Features and Benefits:

Rated output wattage of 10 W to 1500 W
Overcurrent and overvoltage protection
Harmonic attenuator
Convection cooled or fan cooled depending on model
PBA50F to PBA150F models have increased efficiency due to synchronous rectification technology
PBA300F to PBA1500F models have parallel operation and parallel redundancy operation. They also feature remote ON/OFF, a fan alarm, and remote sensing among other functions.

Product Applications:

Suitable applications include automated machinery and semiconductor equipment.

Note

All models include ventilated cover.
Carry out the necessary testing on end equipment with the power supply installed as per required EMC/EMI regulations

Standards

(At only AC input) UL60950-1, C-UL(CSA60950-1), EN60950-1, EN50178 Complies with DEN-AN
Conducted noise: Complies with FCC Part15 class B, VCCI-B, CISPR22-B, EN55011-B, EN55022-B (additional EMI/EMC filter required to meet Class B for PBA1500F models)
Harmonic attenuator complies with IEC61000-3-2 (PBA10F, 15F and 30F models - not built into active filter)

Approvals

UL, C-UL, EAMSL compliant, IEC61000-3-2, CE

Техническая спецификация
pdfPBA10F-150F Series Datasheet
pdfPBA Series Instruction Manual
pdfPBA Series Optional Parts
Вес:
350гр
Входное напряжение:
120 → 370 V dc, 85 → 264 V ac
Выходной ток:
15A
Глубина:
82.5мм
Длина:
149.5мм
Количество выходов:
1
Максимальная температура:
+71°C
Минимальная температура:
-10°C
Мощность номинальная:
49.5Вт
Напряжение выходное:
3.3В пост. тока
Тип монтажа:
Монтаж на шасси
Тип упаковки:
Enclosed
Ширина:
35.5мм
Эффективность:
77 %, 78 %
