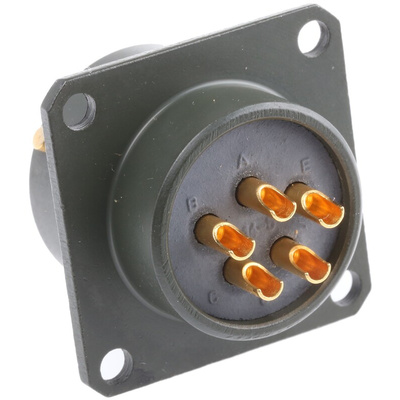

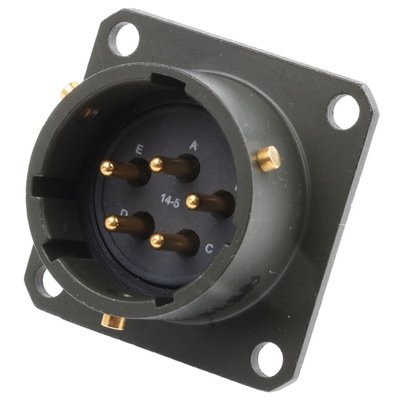

62GB-12E14-05PN, 62GB Series, Amphenol 5 Way Box Mount Receptacle Connector, Pin Contacts,Shell Size 14, Bayonet Coupling

0104008
Цена за шт.
3187.50 руб. *

Срок поставки: 4-6 недель

Stock Number: 104-008
Номер производителя: 62GB-12E14-05PN
Производитель: Amphenol
+

* Цена с НДС справочная. Возможно ее увеличение на стоимость доставки по России и сертификации.

Signal Connectors

Amphenol 62GB miniature bayonet lock square flange receptable and cable mount plug signal connectors are incredibly durable and versatile, manufactured from solid aluminium bar, with a zinc cobalt olive drab finish and complete with solder bucket gold plated male or female contacts and with inserts of polychloroprene rubber. The Amphenol 62GB range of mil spec connectors are similar in design and function to MIl-DTL-26482 but with an added keyway that assists in preventing the mis-mating of the connectors.These durable square flange receptacle and cable mount plug connectors are resistant to harsh environments and extreme temperatures, 62gb receptacle and plug signal connectors are ideal for use in many military and industrial connector applications.

Dimensions
Shell size A (dia.) (mm) B (mm) C (dia.) (mm)
08 14.42 15.08 3.05
10 17.53 18.29 3.05
12 21.84 20.57 3.05
14 25.15 23.11 3.05
16 28.19 24.64 3.05
18 31.49 26.92 3.05
20 34.54 29.46 3.05
Note

Cable-mounting plugs (pin contacts) will only mate with chassis sockets. Cable-mounting sockets will only mate with chassis plugs.Cable clamps (strain reliefs) may be selected separately. Spin coupling backshells are also available. See stock no 241-1294 (typically)

http://uk.rs-online.com/largeimages/L450180-24.gif
http://uk.rs-online.com/largeimages/L450269-01.gif
Amphenol - 62GB (Olive Drab) (MIL-C-26482 Conforming) 62GB (Olive Drab)

High quality bayonet locking connectors that have been designed to meet the requirements of BS9522 FOO17, Def Stan 59-35 and MIL-C-26482E. The connector shells are machined from aluminium alloy bar to ensure high strength. A zinc cobalt plating provides a resilient, durable and long lasting finish which meets the requirements of the EC Directive for cadmium free products. These solder termination connectors are all provided with normal orientation of the inserts and are suited to applications where robust high quality connectors are demanded. This range offers standard signal pin and power pin type planforms.

Electrical
Working Voltage 700Vdc or ac peak
Voltage Proof 2100Vdc or ac peak
Current Rating In isolation Fully loaded connector
Signal Contacts:
Size 16 Contacts 13A 10A
Size 20 Contacts 7.5A 5A
Power Contacts:
Size 8 45A 40A
Size 12 23A 20A
Contact Resistance 5mΩ max.
Insulation Resistance 5000MΩ
Mechanical
Shell Material Aluminium alloy
Shell Finish Olive drab over zinc cobalt
Contact Material
Wire Conductor Size
Size 20 Contacts 0.2mm2 to 0.5mm2
Size 16 Contacts 0.2mm2 to 1.5mm2
Size 12 Contacts 6mm2 max.
Size 8 Contacts 20mm2 max.
Temperature Range -55 → 125°C
Environmental Classification 55/125/56

Техническая спецификация
pdfEasy Guide to Choosing 62GB Connectors
pdfAmphenol 62 GB Receptacles Catalogue

Военный стандарт:
MIL-DTL-26482
Кол-во контактов:
5
Концевая заделка:
Припой
Номинальное напряжение:
1.2 кВ пост. тока, 850 В перем. тока
Оболочка:
Zinc Cobalt
Ориентация корпуса:
Прямой
Покрытие контактов:
Золото
Рабочая температура - максимальная:
+125°C
Рабочая температура - минимальная:
-55°C
Размер корпуса:
14
Род:
Female
Род контакта:
Male
Серия:
62GB
Тип монтажа:
Box Mount
Тип стыковки:
Bayonet Coupling
Цвет:
Olive
