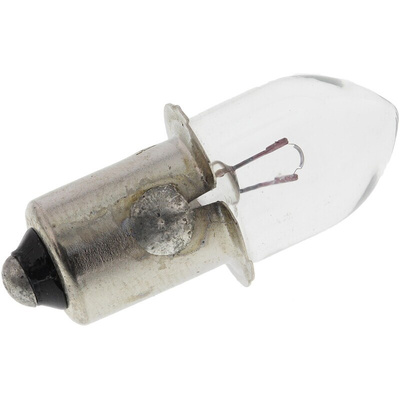

RS Pro 2.92 W Krypton Replacement Torch Bulb, P13.5s, 5.4 V, 540 mA for General Purpose

0104941
Цена за шт.
166.60 руб. *

Срок поставки: 4-6 недель (за исключением новогодних праздников).

Stock Number: 104-941
Номер производителя: TKR0501
Производитель: RS Pro
+

* Цена с НДС справочная. Возможно ее увеличение на стоимость доставки по России и сертификации.

P13.5s Olive Prefocus Krypton

General purpose torch lamp

Olive shape B3 - 11mm Glass
P13.5s prefocus base
Krypton gas filled
High brightness alternative to vacuum types

Torch Lamps

Filament lamps will perform to specification and give optimum life when: they are powered at the rated voltage from a stabilised 50Hz ac supply; the ambient temperature is in the range +20°C to +25°C; and no mechanical vibration is present.

Deviations from these criteria can have a significant effect on lamp life, particularly with low current filaments (<80 mA).

Operation from a dc. supply at rated voltage can reduce specified life by up to 50%.

The effect of variation from the rated operating voltage should be noted: 5% above will reduce lamp life by up to 50%; and 5% below will significantly increase lamp life.

Current consumption can vary by up to ±10% on stated values at rated supply voltage. Care therefore should be exercised when running a number of lamps in series. In such applications it is recommended that the rated voltage be reduced by 10% to prevent premature failure of individual lamps.

Conversion of light output units: Lumens = MSCP x 12.6, MSCP = Lumens / 12.6.

Техническая спецификация
pdfDatasheet

Для использования с:
Общего назначения
Мощность:
2.92 Вт
Номинал тока:
540 мА
Номинальное напряжение:
5.4 В
Тип лампы:
Krypton
Цоколь:
P13.5s
