RS PRO Line Monitor RS232C, Коммутационный блок

0202537
Производитель: RS PRO
Цена за шт.
5412.00 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

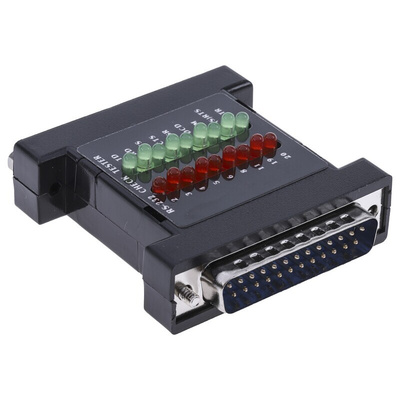

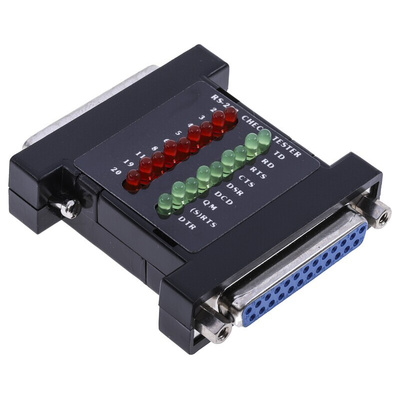

RS Pro Mini RS-232 Monitor

This small and effortless RS-232 breakout box is a super simple way of monitoring RS-232C/V24 data traffic. The small adapter comes equipped with 9 LEDs that indicate the status of the transmission on the most significant lines. All that is required is to plug it in-line so this requires no connectors or software. All lines are wired pin to pin.

Features and benefits-
•Super easy to use, just plug and monitor.
•18 Efficient LEDs to indicate errors. Red indicates +VE high and green indicates –VE low.
•All lines are wired pin to pin
•500 mating cycles
•30mA, 15 mΩ contact rating
•25-way ’D’ connector M-F line installation

You can use this RS-232 breakout box to debug and solve interface problems. With it being so small and compact you can take it anywhere and test almost any cable you need. This would make a great use in an IT kitbag.

Make sure to plug the correct end of the RS-232 port onto the correct end of the DTE cable otherwise the lights will not correspond with the actual signals.

RS PRO
RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Line Monitors

Line monitors designed for rapid checking and trouble shooting of computer interfaces especially EIA RS-232C (V24)
Conforms to RS-232 and discriminates against out of tolerance signals
The LEDs on the front panels of the testers are generally on the signal originating side of the unit, allowing the signal to be broken yet remain monitored
Separate RED and GREEN LEDs ensure unambiguous monitoring

Техническая спецификация
pdfDatasheet
Высота:
16мм
Длина:
53мм
Источник питания:
Батарея
Оборудование - тип:
Line Monitor
Тип коннектора:
RS232C
Тон:
Да
Ширина:
53мм
