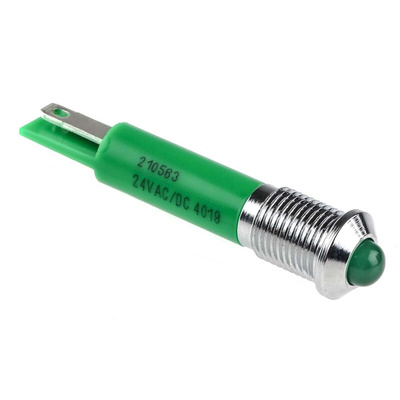

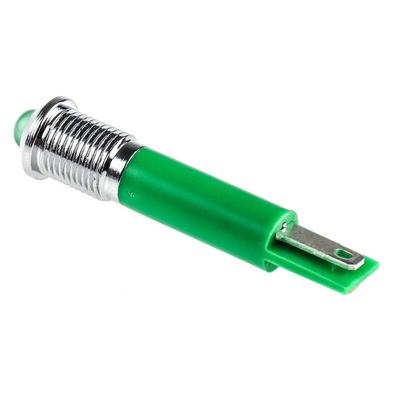

RS PRO Green Indicator, 24 V ac, 8mm Mounting Hole Size, Solder Tab Termination, Индикатор

0210563
Производитель: RS PRO
Цена за шт.
1875.00 руб. (С НДС) *
Количество 10+ 25+ 50+ 100+
Цена 1689.00 руб. 1539.00 руб. 1314.00 руб. 1125.00 руб.

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

RS Pro 8mm LED Indicators

Brought to you by RS Pro, a range of high quality indicators. These LED indicators are an excellent solution to applications which require a signal or warning light. The build quality and reliability of each indicator and LED provides a high level of brightness and longevity at low level consumption. The body of these indicators available include a convenient solder lug, meaning they can be terminated through a quick and easy installation for your application.

Features and Benefits

• 5 mm coloured diffused epoxy lens
• LED Colours available include: Red, Green and Yellow
• Solder tab terminals for quick installation
• Both black satin and black chrome brass bezels are available
• 2.8 mm x 0.8 mm terminals
• Various voltage ratings

What are the uses of an Indicator?

Uses of indicators fall entirely down to the user. They can be fixed to PCB circuit boards and mounted on push buttons and switches. Primarily, these types of indicators are used within circuit boards and electronic designs. This is due to their relatively small size, as compared with other types of indicators, such as car turn signals. The LED's included within the equipment itself are reliable and excellent quality.

Why choose LED?

LED's have many benefits, the longevity and low power consumption are the main selling points of an LED. However, there are various other reasons to consider:

• Temperature - LED's give off a far cooler temperature than what an incandescent or neon light would.
• Direction - LED's will only emit light in a single direction, reducing the need for additional components, such as reflectors. Although this would not apply if the LED indicator is being used as a circuit board signal.

Техническая спецификация
pdfEC Declaration of Conformity
pdfRS Pro Datasheet
Длина:
40мм
Интенсивность:
40мкд
Номинал тока:
20мА
Номинальное напряжение:
24В перем. тока
Размер монтажного отверстия:
8мм
Рамка - цвет:
Хром
Тип выводов:
Solder Tab
Тип лампы:
Светодиодная
Тип рамки:
Выступающий
Цвет выходного света:
Зеленый
