54115215 & 53119110, Lapp Skintop KR-M M16 Cable Gland With Locknut, Polyamide, IP68, ATEX

0237079
Номер производителя: 54115215 & 53119110Производитель: Lapp
Цена за шт. (норма упаковки 5 шт)
1023.00 руб. (С НДС) *
Количество 5+ 25+ 50+
Цена 1023.00 руб. 972.00 руб. 921.00 руб.

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

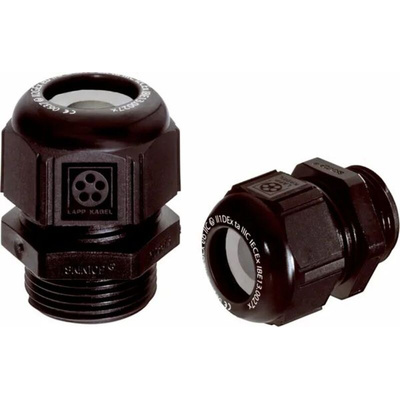

Lapp Skintop KR-M ATEX plus Cable Gland

From Lapp, this tough polyamide cable gland is ATEX approved for complete protection. The Skintop K-RM ATEX plus is constructed to be used for electrical equipment in areas with risk of explosion, and require class ’e’ security.

With a simple screw-on design, this Skintop cable gland is quick fitting to reduce assembly time, and can be used for cable management in panels, junction boxes and equipment housing. The cable gland provides a high degree of strain relief, which can protect the cable connection from wear and tear. It also features a reducing seal insert to seal cables with smaller outer diameters.

When equipment protection in demanding environments is required, the Skintop K-RM ATEX plus is ideal.

Features and Benefits

• Explosion Proof
• IP68, 10 Bar
• Optimum Strain Relief
• Mechanical Resistance
• Vibration Protection
• Reducing Seal Insert

Applications

They are ATEX approved for use with electrical equipment that require class "e" security. This means they are ideal for use in environments where explosion might be a risk, such as:

• Offshore and Marine Industries
• Chemical and Petrochemical Industries

Environment

This Skintop cable gland is protected to IP68, which means they have excellent protection against dust and particle ingress, and waterproof up to shallow submersion. This means they can operate in harsh indoor environments and are also suitable for many open air applications.

Standards

DIN-EN 50014, 50019, Threads - EN 50262

Supplied with

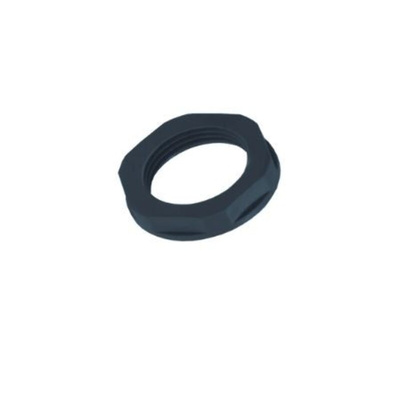

Sealing insert for cables of smaller diameters and locknut

Техническая спецификация
pdfDatasheet
pdfLAPP_PRO998_Datasheet
pdfDatasheet
pdfCable Gland Selection Chart
Контргайка в комплекте:
Да
Максимальный диаметр кабеля:
6мм
Материал:
Полиамид
Минимальный диаметр кабеля:
4мм
Рабочая температура - максимальная:
+80°C
Рабочая температура - минимальная:
-20°C
Размер резьбы:
M16
Серия:
Skintop KR-M
Сертификация опасной зоны:
ATEX
Степень защиты IP:
IP68
Цвет:
Черный
