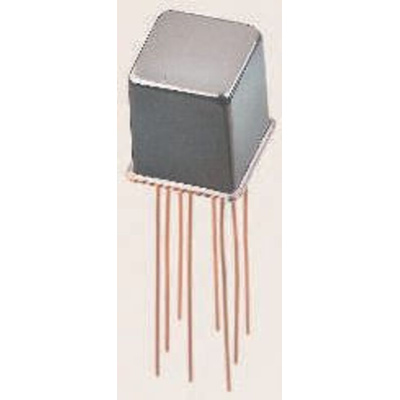

172-12, Teledyne DPDT PCB Mount, RF Relay 12V dc, Реле

0351465
Номер производителя: 172-12Производитель: Teledyne
Цена за шт.
23607.00 руб. (С НДС) *
Количество 10+ 50+ 100+ 250+
Цена 22710.00 руб. 21861.00 руб. 21081.00 руб. 15252.00 руб.

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

Teledyne RF Relay

The Teledyne Centigrid® RF relay is an ultra-miniature, hermetically sealed and DPDT armature device. It has a coil voltage rating of 12VDC. It has a low profile height and grid spaced terminals that prevent the need for spreader pads and make them suitable for use when close PCB spacing is required. The series 172 relay has an internal discrete silicon diode for coil transient suppression.

Features and Benefits

Advanced cleaning techniques provide maximum assurance of internal cleanliness
All welded construction
Coil resistance is 400ohm
Maximum DC voltage rating is 16VDC
High force/mass ratios for resistance to shock and vibration
Low insertion loss - isolation and intercontact capacitance of 0.4pF
Excellent switching performance from DC to 2GHz
Precious metal alloy contact material with gold plating ensures excellent high current and dry circuit switching capabilities
Unique uni-frame design provides high magnetic efficiency and mechanical rigidity
Operating temperature ranges between -55°C and 85°C

Applications

Attenuators
Mobile communication
Telecommunication
Test instruments

Certifications

ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007

Техническая спецификация
pdfSeries 172
pdfElectromechanical Relays Selection Guide Data Sheet
Высота:
7.11мм
Глубина:
8.51мм
Диапазон рабочих температур:
-55 → +85°C
Длина:
8.51мм
Катушка напряжение:
12В пост. тока
Конфигурация контактов:
DPDT
Материал контактов:
Позолоченный металлический сплав
Рабочая температура - максимальная:
+85°C
Рабочая температура - минимальная:
-55°C
Размеры:
8.51 x 8.51 x 7.11мм
Сопротивление катушки:
400 Ом
Тип монтажа:
Крепление на печатной плате
