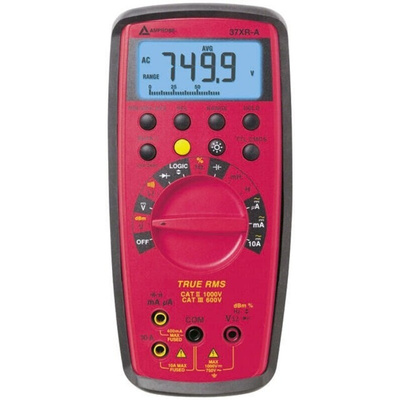

Amprobe 37XR-A Digital Multimeter

The Amprobe 37XR-A digital multimeter is a true RMS digital multimeter with a component and a logic test for troubleshooting electronic instrumentation in the lab or on the jobsite. The Amprobe 37XR-A can measure inductance to 40 Hz, frequency to 40 MHz, capacitance to 400 μF and logic to 20 MHz. The meter has a 10,000 count display with 0.1% accuracy at selected ranges.
Amprobe 37XR-A digital multimeters have many great features including an input warning tone when test leads are put in the wrong jacks; continuity beeper; Min/Max, Average, Relative, Peak and Data Hold; Auto power-off and a separate door for battery and fuse access. The Amprobe 37XR-A has a CAT III 600 V, CAT II 1000 V safety rating and is UL listed.

Features and Benefits:

• True RMS
• DC Voltage to 1000 V
• AC Voltage to 750 V
• DC and AC Current to 10 A
• Resistance to 40 MΩ
• Capacitance, Inductance, Frequency, Duty Cycle, dBm
• Continuity: Audible Indication < 40 W
• Diode Test
• Logic Test: TTL, CMOS
• Overload protection
• 4-3/4 digit; 10,000 count LCD
• 41-segment analogue bar graph
• CAT III 600 V, CAT II 1000 V safety rating
• UL listed

Supplied with
type":"Supplied with",

• Test leads with threaded alligator clips (TL36A)
• 9 V battery
• Magne-Grip holster w/magnetic hanging strap (H2-XRA)
• Spare fuse
• Manual

37XR-A True RMS Digital Multimeter Data Sheet

37XR-A Digital Multimeter User Manual
