62GB-812-14, Amphenol Limited, 62GB MIL-DTL-26482 Plug Dust Cap, Shell Size 14, with Zinc Cobalt Finish, Пылезащитный колпачок

0454413
Номер производителя: 62GB-812-14Производитель: Amphenol Limited
Цена за шт.
5334.00 руб. (С НДС) *
Количество 10+ 25+ 50+
Цена 5184.00 руб. 5034.00 руб. 4887.00 руб.

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

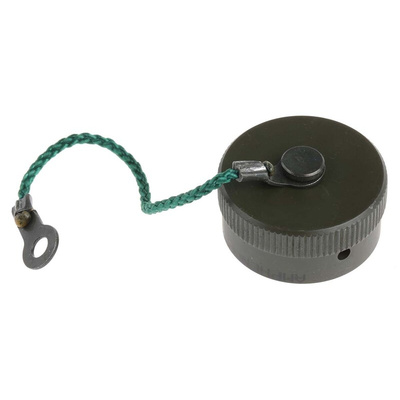

Dust Cap for Chassis Connectors (Olive Drab)

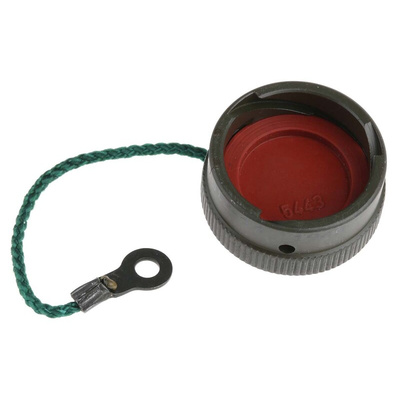

Dust caps suitable for Amphenol 62GB chassis mounted connectors in the UK Pattern 105 and MIL-C-26482 ranges. A silicone rubber gasket provides sealing to a chassis receptacle. A nylon retention cord is fitted.

Features & Benefits

Suitable for chassis mounted and box-mounted receptacles
Silicone rubber gasket
Nylon retention cord

Product Application Information

62 GB connectors are ideal for use in many military and industrial connector applications. These durable connectors are environmentally sealed, and are resistant to harsh environments and extreme temperatures. The dust cap protects unmated connectors.

62GB (Olive Drab)

High quality bayonet locking connectors that have been designed to meet the requirements of BS9522 FOO17, Def Stan 59-35 and MIL-C-26482E. The connector shells are machined from aluminium alloy bar to ensure high strength. A zinc cobalt plating provides a resilient, durable and long lasting finish which meets the requirements of the EC Directive for cadmium free products. These solder termination connectors are all provided with normal orientation of the inserts and are suited to applications where robust high quality connectors are demanded. This range offers standard signal pin and power pin type planforms.

Техническая спецификация
pdfAmphenol 62GB Series Dust Caps (810, 812)
Внешнее покрытие:
Zinc Cobalt
Военный стандарт:
MIL-DTL-26482
Материал:
Алюминий
Место для монтажа в панель:
Нет
Размер корпуса:
14
Род:
Plug
Серийный номер:
812
Серия:
62GB
Цвет:
Черный
Шнур в комплекте:
Да
