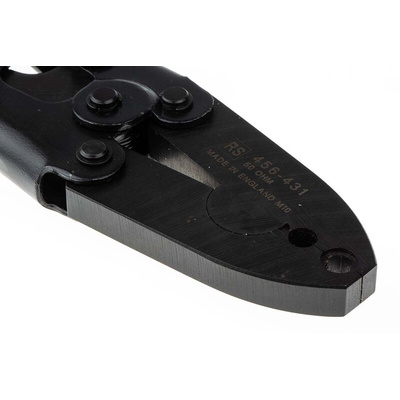

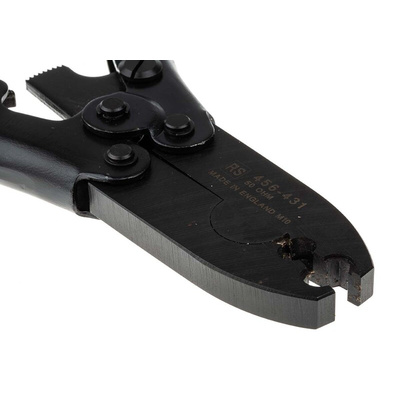

RS Pro Crimp Tool, BNC, TNC, RG59, RG62 Wire Size

0456431
Цена за шт.
9606.70 руб. *

Срок поставки: 4-6 недель

Stock Number: 456-431
Номер производителя: RATCHET CRIMP TOOL 50 OHM
Производитель: RS Pro
+

* Цена с НДС справочная. Возможно ее увеличение на стоимость доставки по России и сертификации.

50Ω & 75Ω Connector Crimp Tools

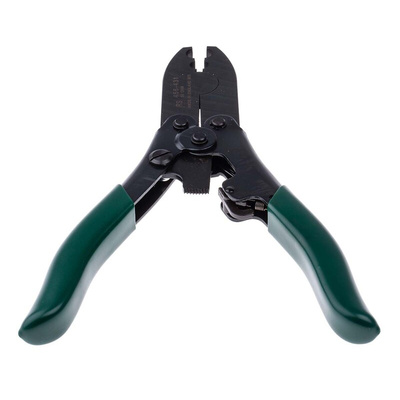

Two ratchet action crimp tools suitable for terminating the BNC, TNC, and UHF ranges of crimp connectors :,50Ω version, Identified by its Green handles, is mainly suitable for 50Ω connectors in cable group A, and a 75Ω red-handled tool, for 75Ω connectors in cable groups F & D.

General Support Tooling

The crimp tooling detailed on this and subsequent pages are recommended, in most cases, for a wide range of connectors and associated cable types. The 'Crimp Tool Selection Guide' table indicates the cable type(s) and/or specific type(s) of connector for which each tool is recommended. The 'Die Set Selection Guide' table indicates compatible cable types and their 'Group number' and details of frame tool required. A small number of crimp tools have been considered to be 'dedicated' to a connector type. These tools have been incorporated with those connector ranges on respective pages, and are not included within this General Tooling Range.

Crimp Tool Selection Guide
Tool Stock no BNC TNC N 1.6 / 5.6 SMA SMB UHF Mini UHF Die Set Apertures (mm) Typical Cable Types
453-870 ! 6.48, 5.41, 1.69 RG58, 59, 62, 71
298-1080 4.52, 3.25, 1.69 RG174, RG179
447-459 4.52, 1.69 MIN RG59, 179
456-431 5.38 to 5.43, RG58, URM43, URM76
456-447 6.45 to 6.50, RG59, RG62
473-0648 6.45 to 6.50, 1.68 to 1.71 RG59, URM70
456-778 6.48, 5.40, 1.70 n/a
241-8380 10.9, 5.41, 2.54, 1.69 RG58, 213, 214
Note: Where a ’! ’ is shown in this first table with respect to the 1.6 / 5.6 series of connectors, users should be aware that the two tools identified will crimp the outer ferrule of the connector only.
Die Set Selection Guide
Die Set Stock no Die Set Typical Cables (Cable Groups) Use Frame Tool Die Set Apertures
431-4432 Y1508 BT2002VQ 425-6156 0.057, 0.204 ( in )
431-4448 Y1503 BT3002VC 425-6156 0.057, 0.178 ( in )
431-4505 Y1509 BT2003VR 425-6156 0.057, 0.268 ( in )
425-6162 Y1829 BT2003 (H) 425-6156 0.068, 0.296 ( in )
431-4454 Y1514 RG58 (A) 425-6156 0.067, 0.213 ( in )
431-4460 Y1505 RG59 (F) 425-6156 0.057, 0.255 ( in )
431-4498 Y110 RG213 (T) 425-6156 0.10, 0.429 ( in )
848-436 - RG58, 59 (A, F, K) 848-391 6.48, 5.41, 1.72 ( mm )
282-3502 - RG174, 178, 179 (B, E, N) 848-391 3.25, 2.68, 1.71 ( mm )
158-8961 - BT2002, 2003 (H, J) 848-391 6.81, 5.18, 1.46 ( mm )
241-8396 - RG213, 214 (T, W) 848-391 10.89, 2.54, 2.03, 1.72 ( mm )

Техническая спецификация
pdfV4178 Ratchet BNC Crimp Tool 50/75 ohm

Размер провода:
RG58, URM43, URM76
Тип обжимного инструмента:
Ratchet
Тип обжимного разъема:
BNC, TNC
