AIH10H300-L, Artesyn Embedded Technologies AIH 250W Isolated DC-DC Converter Through Hole, Voltage in 250 → 420 V dc, Voltage, Преобразователь

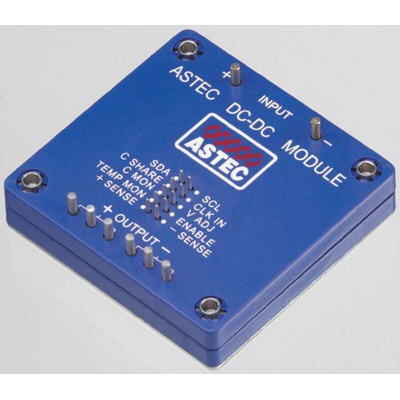

Astec 250W Half Brick, High Power, Regulated, Isolated DC-DC Converter - AIH Series

Isolated single output half brick DC-DC converter module with 250W output and a maximum baseplate operating temperature of 100°C without derating. This single output half brick DC-DC converter module has full safety isolated secondary side control and I²C bus for communication.

Half-Brick, low profile package dc-dc converters, designed for use with Astec AIT & AIF PFC series power supplies
High voltage 250-420Vdc input voltage range
Regulated outputs
Adjustable output voltage by using external resistors (74 to 120% for 5V, 80 to 120% for 12V & 24V)
2.7kV input / output isolation
High efficiency up to 87%
No minimum load required
EMC meets EN 55022 Class A with a recommended filter (refer to Astec Technical Reference Note)
Low output ripple and noise
Control and monitoring functions ( Remote Enable and Current & Temperature Monitoring)
Parallelable with accurate current sharing
Remote sense
Over-voltage, over-current, over-temperature and short circuit protection

Note

MTBF to Telcordia Tech SR-332.

Standards

EN 60950, UL 60950, IEC 60950

Approvals

UL/cUL recognised, TUV

Astec - High Power - 300Vin DC/DC Converters

Datasheet
