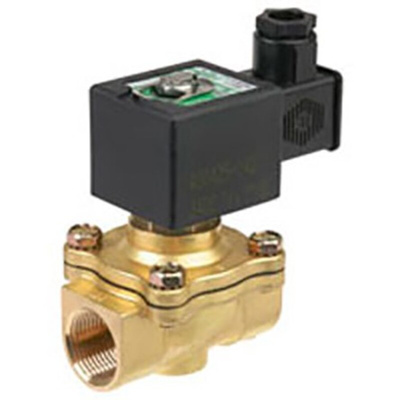

EMERSON – ASCO Solenoid Valve E210C035SCA2, 2 port , NO, 24 V ac, 3/4in, Клапан

0488334
Номер производителя: E210C035SCA2Производитель: EMERSON – ASCO
Цена за шт.
80289.00 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

Two-way, Pilot Operated, Zero Pressure, N/O Valves

Two-way pilot operated solenoid valves with zero bar minimum operating pressure, normally open with threaded port connection.

Brass body
Pressure not required for operation
Compact & lightweight
DIN plug connection
Can be mounted in any position

Note

Pressure ranges are for water and may differ for other media.

Compact solenoid valves suitable for most gas and fluid handling applications. Where practical, valves are shown with a schematic diagram showing the (circuit) function. The diagram is laid out so that the left-hand side of the diagram describes the valves operation when the coil is energised. When the coil is de-energised, the spring (or servo-assist) return controls the valve and is described on the right-hand side of the diagram. The 3 / 2-way designation indicates a valve with three ports and two modes of operation. It is normal practice to refer to 2 / 2-way valves as two ways. The port designations A, B, P, P1, P2 and R are used on the schematic diagrams and are marked on the valve bodies. Valve bodies are marked for a specific circuit function but can often be used for other functions. Reference to the schematic diagrams and technical specifications indicates the appropriate connections and pressure capabilities when an alternative circuit function is required.

Техническая спецификация
pdf210 Series SOLENOID VALVESdirect operated hung diaphragm 3/8 to 1 1/2 Data Sheet
Диапазон рабочих температур:
-20 → +75 °C
Количество портов:
2
Корпус - материал:
Латунь
Коэффициент расхода Kv:
4.7м³/ч
Максимальное время закрытия:
120мс
Максимальное время открытия:
120мс
Максимальное рабочее давление:
9 бар
Напряжение питания:
24 В перем. тока
Операция:
Pilot
Отверстие с диаметром:
19мм
По умолчанию положение клапана:
Нет
Подключение тип:
Female
Подходят применения:
Air, Inert Gas, Oil, Water
Рабочая температура - максимальная:
+75°C
Рабочая температура - минимальная:
-20°C
Размер соединения:
3/4in
Связь:
3/4 in Rp Female
Серия:
210
Стандарт резьбы или тип соединения:
Rp
Тип:
2/2
