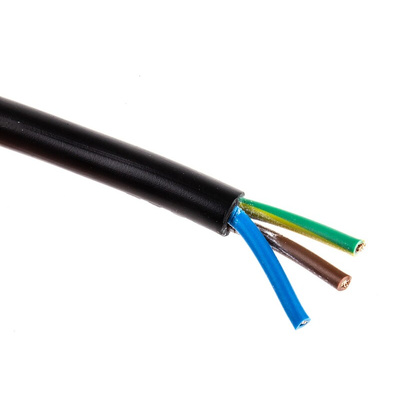

RS PRO 3 Core 0.75 mm² Mains Power Cable, Black Polyvinyl Chloride PVC Sheath 100m, 6 A 300 V, 2183Y H03VV-F

0491891
Производитель: RS PRO
Цена за 1 катушку (100 метров)
31464.00 руб. (С НДС) *
Количество 5+ 10+ 20+
Цена 29355.00 руб. 27501.00 руб. 25863.00 руб.

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

RS PRO BASEC Approved H03VV-F Harmonised Flexible PVC Insulated Mains Cable

From RS PRO a high-quality BASEC approved light duty harmonised H03VVH2-F flexible mains power cable with PVC insulation and a PVC jacket. This mains cable has a voltage rating of 300 V and is designed for use indoors for wiring in mobile and lightweight household and office applications

What is Mains Cable?

A mains power cable connects an appliance to a mains electricity supply through the use of a wall socket or an extension lead which will then be plugged into a mains supply

Cable Construction

This flexible power cable consists of cores made up of fine IEC 60228 Class 5 stranded copper conductors or wires. Each individual core is surrounded by colour coded PVC (Polyvinyl Chloride) insulation for easy identification of the wires. Both the cores are then surrounded by a final outer layer of PVC called a sheath or jacket.

What is BASEC Approval?

BASEC is an independent accredited certification body for the cable industry worldwide which provides an approvals service for cables. BASEC conducts rigorous, high-quality testing across a range of sectors that supply and install cable. These tests meet all the relevant standards and regulations ensuring the cables supplied are safe to use and of the highest quality

What Does H03VV-F Mean?

H03VV-F cable is a type of harmonised cable which means it belongs to the Harmonised Reference System and conforms to the European Harmonisation Standard. This purpose of this standard is to improve standards and quality of cables across Europe to ensure the trade of a common standard product.

H03VV-F is the code for this harmonised cable which breaks down into the following:

• H = Harmonised
• 03 = 300 V voltage rating
• V = PVC insulation
• V = PVC sheath
• F = Flexible copper conductors

Benefits of PVC Insulated Mains Cable

The PVC insulation and sheath of this mains power cable has the following properties

• Low cost
• Excellent insulation properties
• Flexible
• Stable, robust and durable
• Oil resistant

Where are These Cables Used?

These PVC flexible cables are designed for use in light duty domestic and office electrical wiring applications and as general supply leads. This cable should be used on appliances that are indoors or in a covered, dry or humid area and is best used where the potential for mechanical stresses and mechanical damage is low. This cable should not be used with electrical cooking or heating apparatus. Applications include portable appliances in office and domestic environments such as table and standard lamps and small electronic appliances

Note

The number of strands used in the construction of the cores is nominal and may vary.

Approvals

BS6500, CENELEC HD21.5 and BASEC

Standards

BS6500

Техническая спецификация
pdfCables Selection Guide
Американский размер проводов:
18 AWG
Внешний диаметр:
5.2 → 6.7мм
Встречающиеся стандарты:
BS EN 50525
Гармонизированный код:
H03VV-F
Длина:
100м
Жилы:
24/0.2 мм
Количество нитей:
24
Количество ядер:
3
Материал изоляции:
ПВХ
Материал оболочки:
Polyvinyl Chloride PVC
Материал проводника:
Медь
Номинал тока:
6 A
Номинальное напряжение:
300 В
Площадь поперечного сечения:
0.75 мм²
Рабочая температура - максимальная:
+70°C
Рабочая температура - минимальная:
-15°C
Размеры нитей:
0.2 мм
Сопротивление проводника:
26 Ом/км
Тип:
2183Y
Тип проводника:
Stranded
Цвет оболочки:
Черный
