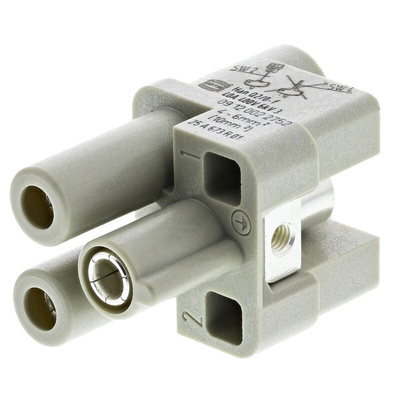

09120022752, HARTING Han Q Cable Mount Connector Housing, Female, 3 Way, 40A, 830 V

0567398
Номер производителя: 09120022752Производитель: HARTING
Цена за шт.
11484.00 руб. (С НДС) *
Количество 10+ 25+
Цена 11037.00 руб. 10566.00 руб.

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

Han Axial Screw Module 70A

Axial-screw termination
2-pole 70A contacts for power circuits
High 1000 Vac rating
Coding pin allows polarisation of modules
Male and female contacts are finger safe
Mating cycles ≥ 500

Harting Han® Modular

The Han-Modular series is a system consisting of insert modules and frames into which the insert modules fit. These in turn may be fitted to standard Han® housings. The system allows a variety of insert configurations within the one connector assembly. The Han-Modular system is designed to meet specific requirements of individual customers and offers flexibility when considering connections for signal, power & pneumatic lines when a solution is required with one connector Apart from the quality of the crimp connector, the right choice of the assembly tool is the basic element of a reliable connection. HARTING offers appropriate crimping tools for different levels of automation for all connectors.

Техническая спецификация
pdfTB 09120022752 Dimensional Drawing
pdfDatasheet
pdfDimensional Drawing
Кол-во контактов:
3
Номинал тока:
40A
Номинальное напряжение:
830 В
Ориентация корпуса:
Прямой
Род:
Female
Серия:
HAN Q
Тип:
Корпус разъема
Тип монтажа:
Кабельное крепление
