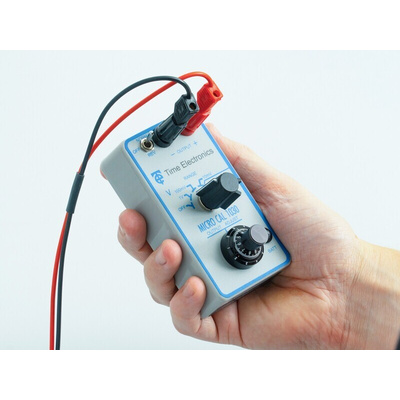

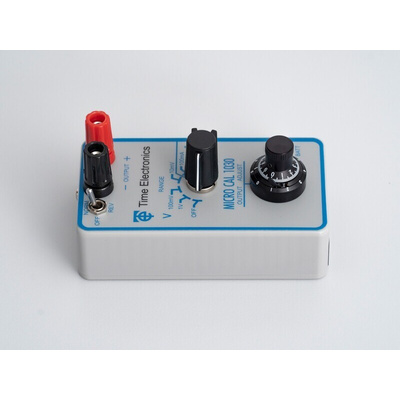

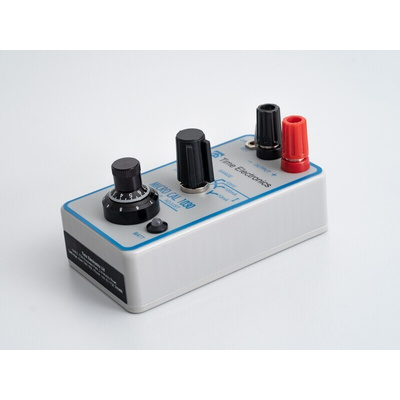

Time Electronic Current and Voltage Calibrator
The Time Electronic current and voltage calibrator is a portable voltage and current calibrator designed for traditional analogue control applications. It is suitable for voltage and current loop signal simulations, as well as, thermocouple simulations. The precision 10-turn dial provides a conventional feel to selecting the required output with a setting resolution of 1 part in a 1000 (0.1%). The compact (115 x 62 x 55mm) and durable design make it ideal for use in both the lab and field applications. Being both cost-effective and simple operation, it is a popular instrument used in various applications across industries.
Features and Benefits
Measuring voltage ranges from
10mV, 100mV, 1V ranges
Measuring current ranges are 10mA, 100mA ranges
Accuracy 0.1%
Linearity 0.15%
Up to 8V output (using 1kΩ resistor)
Precision 10-turn dial
60 hours typical battery life
Battery level indicator

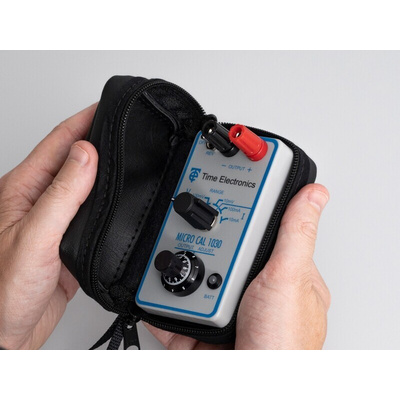

Supplied with carry case
Applications
Electrical servicing and maintenance
Laboratories
Electronic servicing and maintenance
Industrial automation
Certifications
ANSI/ESD S20.20: 2014
BS EN 61340-5-1: 2007
1030 MicroCal Technical Manual
1030 MicroCal Voltage & Current Source Data Sheet
1030 MicroCal Voltage & Current Source Product Image
