005900-RS, Solartron Metrology Signal Conditioner, 0.5 → 750 mV/V Input, 5 → 10 V dc Output

Hybrid Modules For Signal Conditioning

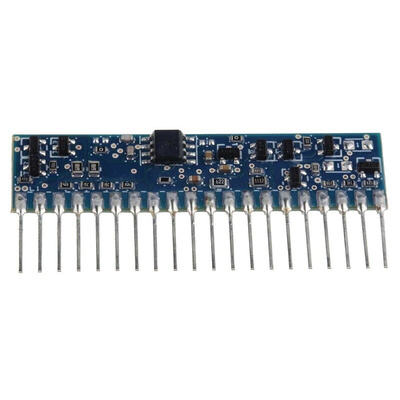

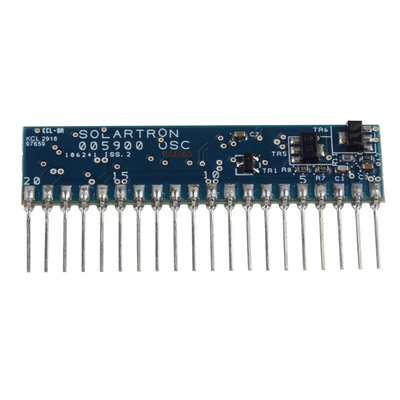

Hybrid thick modules for incorporation on to PCBs containing all necessary circuitry to obtain the best performance from high quality ac type LVDT transducers

Approvals

RoHS

Supplied with

full instructions and application examples.

Linear Variable Differential Transformers (LVDT)

These devices comprise a movable nickel iron core and three coils - one for energisation and two for pick-up. They need to be driven by a sine wave to produce an output amplitude and phase directly proportional to the position of the core with respect to the pick-up coils. A phase sensitive detector is required to demodulate the output signal. The main advantages of LVDTs are;

No wear problems as with potentiometers
Infinite resolution, high accuracy and linearity
No friction introduced into the measured system
Available in ranges from ±1mm to ±50mm

Note

RS LVDT's datasheet Stock No. 232-4049 is available on request.

Hydrid Oscillator and Demodulator LVDT Modules Operating Instructions
