515015, ALWAYSE Circular Flange 15mm Stainless Steel Ball Transfer Unit, Модуль

0687972
Номер производителя: 515015Производитель: ALWAYSE
Цена за шт.
3366.00 руб. (С НДС) *
Количество 5+ 10+
Цена 2853.00 руб. 2754.00 руб.

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

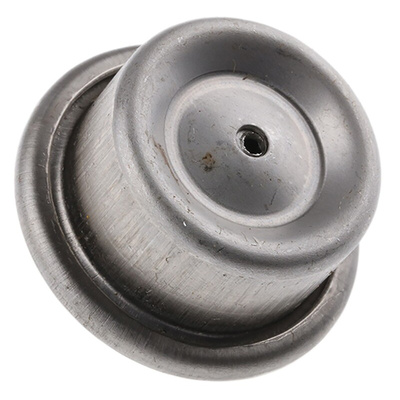

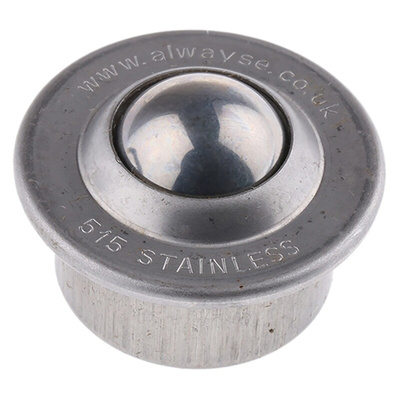

ALWAYSE Bolt Fixing Ball Transfer Unit

The ALWAYSE circular flange mount bolt fixing ball transfer unit is a highly efficient device with a maximum load capacity of 35kg. This unit is used to move or transfer loads in all direction with a maximum speed of 1m/s. It is available in a wide choice of load capacities, sizes and fixings.
Fixing clip:
A fixing clip helps to fix from either the top side of a ball deck or the underside. It is suitable for deck thicknesses up to 4mm.

Features and Benefits

Ball diameter is 15mm
Case material is steel
Felt or plastic seal (except 15mm)
Flange diameter is 31mm
Flange type fitting
Load ball material is steel with zinc plated
Main bearing cup toughened steel
Self-cleaning hole
Operating temperature ranging between -30°C and 70°C

Certifications

ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007

Техническая спецификация
pdfDatasheet
pdfDatasheet
Диаметр фланца:
31мм
Диаметр шара:
15мм
Корпус материал:
Нержавеющая сталь
Максимальная нагрузка:
35кг
Материал нагрузочного шара:
Нержавеющая сталь
Тип монтажа:
Circular Flange
