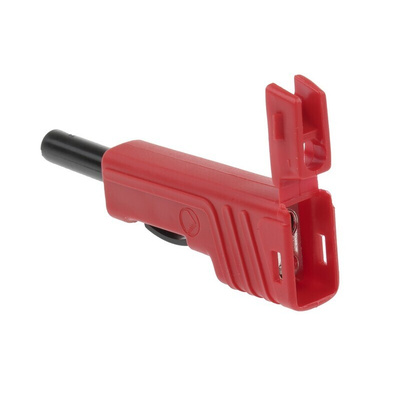

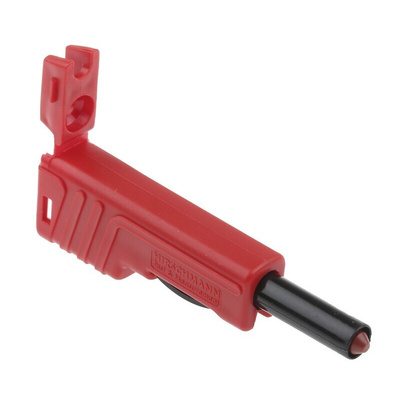

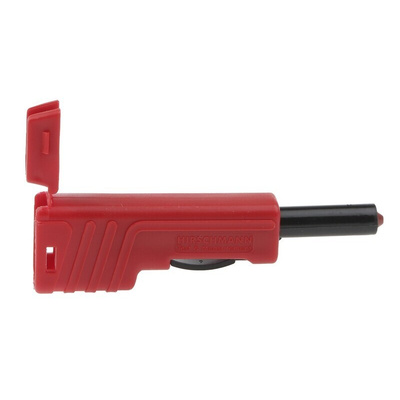

932153101, Hirschmann Test & Measurement Red Male Banana Plug - Screw Termination, 60V dc, 30A

0737954
Номер производителя: 932153101Производитель: Hirschmann Test & Measurement
Цена за шт.
1509.00 руб. (С НДС) *
Количество 10+ 25+ 50+ 100+
Цена 1392.00 руб. 1281.00 руб. 1167.00 руб. 1101.00 руб.

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

SLS 200, CAT I Banana Plugs Retractable Shroud - Stackable

Hirschmann Test and Measurement 4mm Banana plug part of the SLS 200 series, touch-protected screw terminated, stackable 4mm plugs with retractable shroud that is released only through pressure on the side-mounted locking-spring. Accepts conductors up to 2.5mm diameter.

Rated voltage 30 VAC/ 60 VDC
Rated Current 30A
CAT I
Spring loaded pin

Hirschmann Test & Measurement Banana Plug

The Hirschmann Test & Measurement SLS 200 series red banana plug is a male, touch-protected connector with the capability of further connection with a diameter of 4mm. It is insulated by latching and sprung insulating sleeve that is only released by pressure on the side-mounted locking spring. It has rated voltage of 60VDC with a current rating of 30A.

Features and Benefits

Screw termination for cross-sections up to 2.5 mm²
Nickel-plated copper beryllium contact
4mm sliding sleeve system
Contact resistance is 5mohm
Spring loaded pin
Spring contact
Length is 65mm
Insulation material is PP

Applications

Electrical connections

Certifications

ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007

Техническая спецификация
pdfDatasheet
Длина:
65мм
Концевая заделка:
Винт
Материал изоляции:
PP
Материал контактов:
Бериллиевая медь
Номинал тока:
30A
Номинальное напряжение:
60В пост. тока
Покрытие контактов:
Никель
Пружинный контакт:
Да
Размер разъема:
4 мм
Род:
Male
Тип:
Banana Plug
Цвет:
Красный
