Bunch - Stackable
Screw terminated 4mm plugs that accept a cable with a maximum cross section diameter of 2.5mm2. The socket in the rear allows other 4mm plugs to be stacked in-line. 60Vdc rating. Nickel-plated/ brass

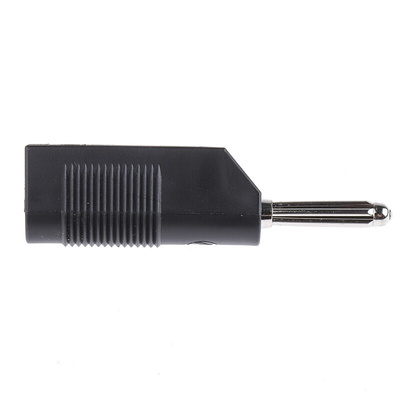

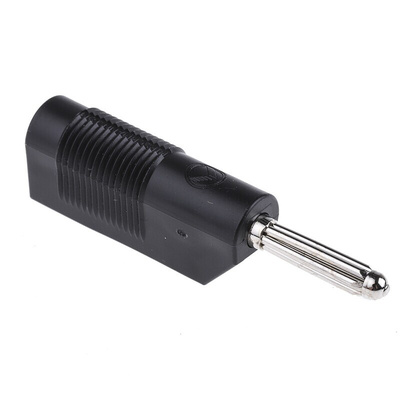

Hirschmann Test & Measurement Banana Plug
The Hirschmann test & measurement black, male banana plug is a multiple-spring wire connector. It has a cable gland and a 4mm socket for onward connection capability. It has a voltage rating of 30VAC and 60VDC and a current rating of 30A.
Features and Benefits
Screw connection up to maximum cable cross-section of 2.5mm²
Nickel-plated brass contact material
Contact resistance is 3mohm
Insulation material is PP
Spring contact
Length is 56mm
Applications
Electrical connections
Electronic connections
Certifications
ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
UL 94 HB approved
IEC61010
Datasheet
