MV080MARR021U0, CAL MAXVU Panel Mount PID Temperature Controller, 96 x 48mm 1 Input, 3 Output Relay, SSR, 110 → 240 V ac Supply, Регулятор температуры

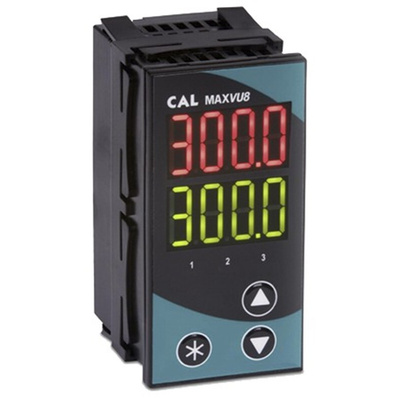

CAL MAXVU Temperature Controller 1/8 DIN

The MAXVU temperature controller from CAL is designed to offer essential temperature control in an easy-to-install device that is fast to program with improved display visibility.
MAXVU provides an affordable solution for applications where primary temperature control functions such as heat only or heat/cool are needed, it offers a universal input and up to 3 outputs with a choice of either relay or SSR.
Typical applications include packaging processes such as sealers and many more.

• High visibility 18 mm display (10.2 mm lower display)
• Wide viewing angle
• Good performance in sunlight
• Quick set-up menu with top 10 configuration parameters
• Thermocouple, PT100 or linear DC sensor input
• Up to 3 outputs, relay or SSR
• 2 process alarms- high/low, deviation or band
• 3 button operation
• 2 x 4-digit display & 3 output status LEDs
• Front panel configuration or PC configuration software
• Set up in 60 seconds
• RS485 Modbus RTU communications

CAL Temperature Controllers

Datasheet
