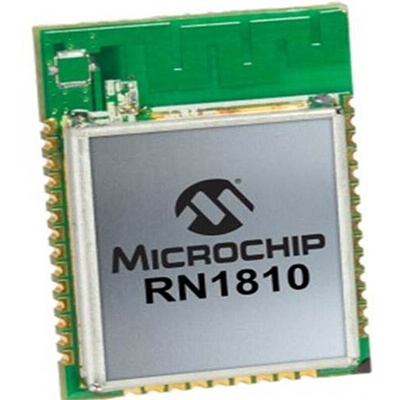

Microchip RN1810-I/RM100 3.15 → 3.45V WiFi Module, 802.11b, 802.11g, 802.11n UART, Модуль

1115554
Номер производителя: RN1810-I/RM100Производитель: Microchip
Цена за шт.
4305.00 руб. (С НДС) *
Количество 25+ 100+
Цена 4176.00 руб. 4056.00 руб.

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

RN1810/RN1810E 802.11b/g/n WiFi Module

The Microchip RN1810 is a low-power 2.4 GHz 802.11b/g/n WiFi Module that combines all the necessary components into a surface mount solution. The RN1810 integrates a TCP/IP networking stack, cryptographic accelerator, power management subsystem, real-time clock, 2.4 GHz transceiver and RF power amplifier.

The RN1810 can help shorten development time. The integrated design provides a certified solution to remove the need for RF design regulatory and compliance testing. Also the RN1810 is simple to program as only simple ASCII command language is required. The simplest configuration of the RN1810 requires only power, ground and UART Tx and Rx connections.

Two variants are available; the RN1810 with an integral PCB Trace Antenna and the RN1810E with a W.FL Connector for an External Antenna.

Features

Fully integrated Low-Power IEEE 802.11b/g/n WiFi module
UART Interface to Host Controller
Configured using simple ASCII Commands
Integrates easily into final product
PCB Trace Antenna (RN1810) or W.FL Connector for an External Antenna (RN1810E)
Compact surface mount module: 17.8 x 26.7 x 2.2 mm
Castellated Surface Mount Pads for reliable PCB mounting
FCC, IC, European R&TTE, Australia/New Zealand, Korea, Taiwan & Japan certified
RoHS compliant

Low-Power Features

Rx Mode Consumption: 64 mA (typical)
Tx Mode Consumption: 246 mA at 18 dBm (typical)
Power-Saving Sleep Mode: 12 μA (typical)

WLAN (Wireless Local Area Network) - Microchip Technology

Техническая спецификация
pdfDatasheet
Высота:
2.2мм
Длина:
26.7мм
Напряжение питания:
3.15 to 3.45V
Поддерживаемые интерфейсы шины:
UART
Поддерживаемые протоколы:
802.11b, 802.11g, 802.11n
Поддерживаемые стандарты безопасности:
WPS
Рабочая температура - максимальная:
+85 °C
Рабочая температура - минимальная:
-40 °C
Размеры:
17.8 x 26.7 x 2.2мм
Ширина:
17.8мм
