Festo Solenoid Coil, MSFG-24/42-50/60-OD, 24 V dc, 42 V ac

Replacement Solenoid Coils

Replacement solenoid coils for use with solenoid valves in pneumatic applications. They have been designed to operate in aggressive conditions and fluctuating temperatures. Replacement coils are obtainable in a range of sizes, IP ratings, temperature ratings, power levels in watts or VA and with or without a plug socket.

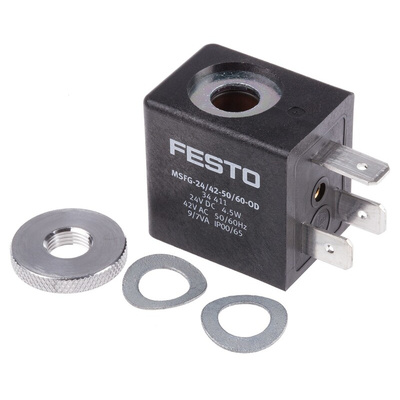

Festo Solenoid Coil - MSFG-24/42-50/60-OD

Festo's solenoid coil is predominantly used with solenoid valves within pneumatic applications. The solenoid coil conforms to RoHS standards and can be mounted with a knurled nut. It has been created and designed to withstand and operate in aggressive conditions and fluctuating temperatures.

Features & Benefits

• Not supplied with a plug socket
• This coil is ideal as a replacement solenoid coil
• Made up of durable, hardwearing materials: Duroplast, Copper and Steel
• The winding material is made up of copper
• Has a protection rating of IP67 - This means that this type of coil is protected against solid objects such as dust and sand and it has also been tried and tested to find that it will work under 1m of water for at least 30 minutes
• Ambient temperature is -5 to 40°C
• 42 V AC (Voltage, actual current): 50/60 Hz, pull-in power 9 VA, holding power 7 VA 24 V DC (Voltage, direct current): 4,5 W
• The electric connection is for a 3 pin plug
• The coil has a minimum tightening time of 10 ms

A little more information...

• A Solenoid coil needs to be replaced within a hydraulic system when the solenoid valve either wears down or stops working
• Did you know that a solenoid is electromagnetic? It's made up of a tightly wrapped metal coil around a solid metal core
• A solenoid coil is most commonly used as a low-power switch that opens and closes a pilot valve, which also controls the main valve through applying pressure to a connected piston
