RS PRO ESD Earth Bonding Plug With 1 x 4 mm Stud, 2 x 10 mm Stud

RS Pro EBP Earth Bonding Point Plug

RS Pro Earth Bonding Plug, EBP, is designed to provide a common ground point using a protective earth in ESD protected areas. The plug fits into the mains supply socket making a connection with the earth conductor only. The live and neutral pins are moulded plastic allowing positive location within the socket. Connectors at the front of the plug allow connection via ground cords to elements of the EPA. The earthing bonding point is only to be used for ESD control purposes plus only use ground cords with compatible connections to the plug.

FEATURES and BENEFITS:

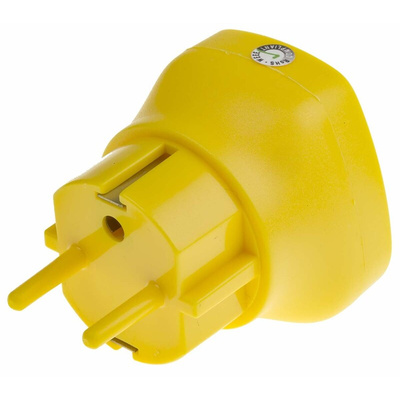

Fits UK European CEE 7 VII Schuko sockets as used in Belgium, France, Germany, Holland, Spain
For use in ESD protected areas
Provides a common grounding point
Fits into mains supply socket
Connects with earth conductor only
Live and neutral pins are moulded plastic

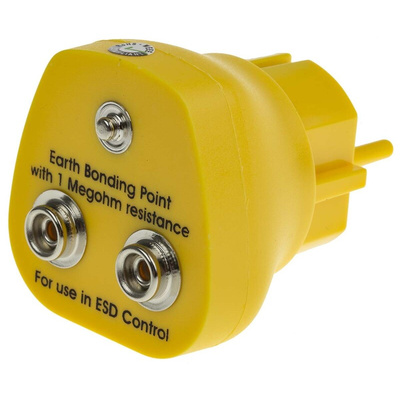

Stud connectors at the front of the plug
Allows ground cord connection
Permanently sealed
Colour – Yellow
Weight 36 g
Size – 63 x 49 x 49 mm

STUDS:

1 x 4 mm
2 x 10 mm

RESISTANCE:

Connector to earth pin 0.8 to 1.2 megohms
Connector to connector approximately 2 megohms

Approvals

Do not open or repair the plug
Only to be used for ESD control purposes
Only use ground cords with compatible connections
Not to be used for eatrhing electrical appliances

RS Pro Datasheet
