RS PRO IPM6200 Power Quality Analyser, Анализатор

1232207
Производитель: RS PRO
Цена за шт.
216471.00 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

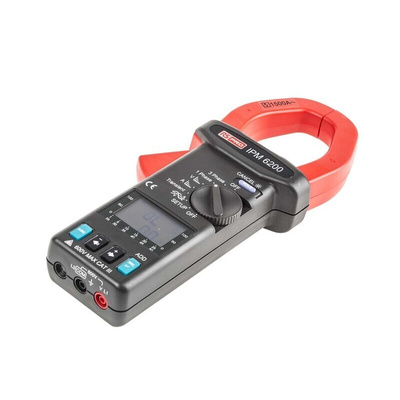

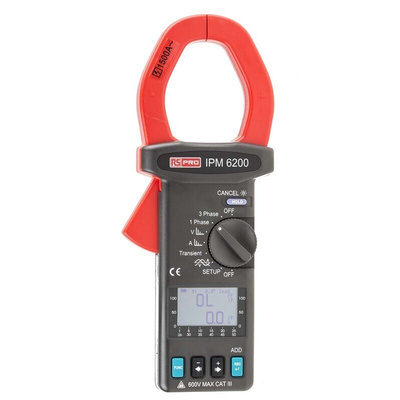

RS Pro IPM 6200 Power Quality Analyser

RS Pro IPM 6200 is a great value, single phase and balanced 3 phase 1500 A ac graphical power quality analyser. It incorporates data logging functions for analysis and diagnosis of power quality and power disturbance issues in electrical installations and power circuits. Optically isolated USB connection lead and analysis software (supplied) enables readings to be displayed and recorded data to be downloaded, controlled and analysed on a PC or laptop computer.

Features and Benefits

Power quality analysis of single and balanced 3-phase systems
Graphical display of voltage and current waveforms
128 x 64 Dot matrix LCD with backlight
Active power measurement (W, kW, HP)
Reactive power measurement (VAR, kVAR)
Apparent power measurement (VA, kVA)
Power factor (PF) and phase angle (Ø) measurements
Energy calculation (WH and kWH)
Maximum demand measurement over presettable time period
Transient detection of Swell, Dip and Outage
Analysis of % THD
Graphical phase diagram display, plus fast peak display
Graphical harmonic analysis (V and A) to the 50th order in % and magnitude
Real time clock
Programmable CT ratio from 1 to 3000 for very high power measurements
Data logging to internal memory for up to 50 000 readings/32 000 transient events with programmable logging interval
Programming logging interval from 1 to 3000 seconds
Conductor size, cable 55 mm (approximately) and busbar 65 x 24 mm
Dimensions 271 x 112 x 46 mm
Weight 647 g (battery included)

Supplied with

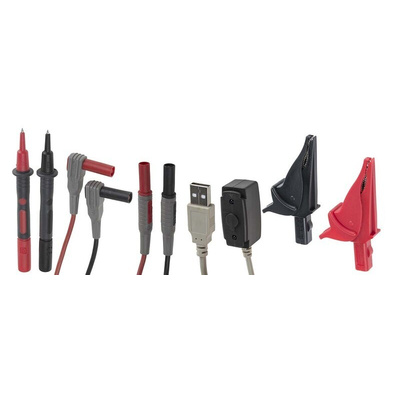

Opto-isolated USB lead, PC software on CD, test leads with crocodile clips, software and user manuals, AA alkaline batteries (x2)

RS PRO IPM 6200 Power Quality Analysers

The RS PRO IPM 6200 is a great value, single-phase and balanced 3-phase 1500A AC graphical power quality analyser. It incorporates data logging functions for analysis and diagnosis of power quality and power disturbance issues in electrical installations and power circuits. Optically isolated USB connection lead and analysis software (supplied) enables readings to be displayed and recorded data to be downloaded controlled and analysed on a PC or laptop computer.
Supplied with
Opto-isolated USB lead, PC software on CD, test leads with crocodile clips, software and user manuals and AA alkaline batteries (x2)

Features and Benefits

Power quality analysis of single and balanced 3-phase systems
Graphical display of voltage and current waveforms
128 x 64 dot-matrix LCD with backlight
9999kW active power measurement
Reactive power measurement (VAR, kVAR)
Apparent power measurement (VA, kVA)
Power factor (PF) and phase angle measurements
Energy calculation (WH and kWH)
True RMS measurement of voltage with 0.5% basic accuracy
True RMS measurement of A with 1% of range basic accuracy
Maximum demand measurement over a pre-settable time period
Graphical phase diagram display, plus fast peak display
Programmable CT ratio from 1 to 3000 for very high power measurements
Data logging to internal memory for up to 50000 readings/32000 transient events with programmable logging interval
Programming logging interval ranges between 1 seconds and 3000 seconds
Auto power OFF function in 15 minutes
Real-time clock
Hold function
Conductor size, cable 55 mm (approximately) and busbar 65mm x 24mm
Dimensions 271mm x 112mm x 46 mm
Weight 647g (battery included)

Applications

Power electronics
Commercial Facilities
Industrial Manufacturing and Plants
Datacentres

Техническая спецификация
pdfDatasheet
pdfDatasheet
Абсолютное максимальное измерение мощности:
9999кВт
Абсолютный максимальный измеряемый ток:
1500A
Вес:
640гр
Высота:
210мм
Длина:
62мм
Источник питания:
Батарея
Количество фаз:
3
Лучшая точность измерения тока:
±0.5 % ± 5 знаков
Лучший тояность измерения напряжения:
±0.5 % ± 5 знаков
Максимальная частота:
50 Hz, 60Hz
Максимальное напряжение:
600В
Модель р:
IPM6200
Рабочая температура - максимальная:
+50°C
Рабочая температура - минимальная:
-10°C
Размеры:
62 x 35.6 x 210мм
Тип батареи:
AA
Тип дисплея:
LCD
Тип измерения:
Переменный ток, Напряжение перем. тока, Мощность переменного тока, Крест-фактор, Гармоника, Угол фазы, Коэффициент мощности, Общее гармоническое искажение
Тип интерфейса:
RS232C
Ширина:
35.6мм
