RS PRO IPM3600N Power Quality Analyser, Анализатор

1232244
Производитель: RS PRO
Цена за шт.
339768.00 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

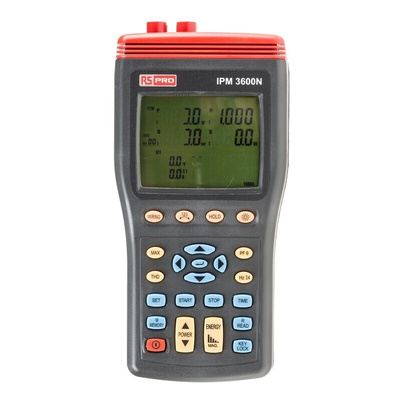

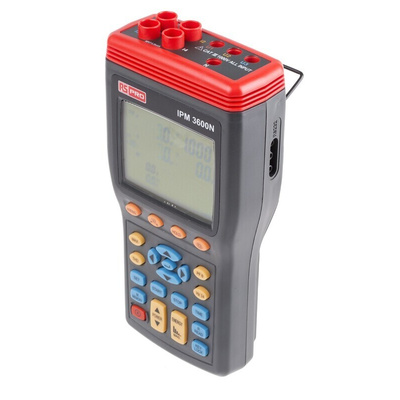

RS PRO IPM3600 Power Quality Tester

RS PRO IPM3600 is a great value 3-phase power analyser for portable measurement and diagnosing power problems in electrical installations and power circuits within public mains supplies. The software allows the power analyser to: communicate with a PC via the USB port; upload data from the tester and store to the PC hard disk; display recorded reading in a graphical format on the PC; convert the recorded data into Excel format for analysis; display signal harmonics in graphical format on the PC; clear the data readings stored in the tester.


Problems that can occur due to power quality problems include automatic resets, data errors, equipment failures, memory loss and overheating electrical distribution systems. These problems in workplaces have a negative impact on production, can damage sensitive equipment and increase costs. Bad power quality can also increase energy consumption.

Features and Benefits

  • 10 display, easy-to-view LCD screen

  • Connectors for 4 current sensing clamps

  • 1 P2W, 1 P3W, 3 P3W2M & 3 P4W power measurement

  • True RMS sensing

  • Power KW, KVAR, KVA, PF, θ, Hz & Energy KWh, KVARh & KVAh measurement

  • Phase sequence indicator function

  • Backlight display function

  • Manual data memory and read (99 sets)

  • Data logging (504 KB memory, 20 000 sets)

  • Programmable trigger - points and start / stop time

  • USB optical interface with three phase voltage / current waveform display and harmonic analysis

  • Easy-to-use push-button operation

  • Lightweight, portable design

Areas of Application

Power quality analysers are multi-function instruments that measure and test various things such as direct current, alternating current, AC-voltage, DC-voltage, harmonics and much more depending on the model. The data can then be logged and analysed with the software supplied with the device. Areas include:

  • Electrical installations

  • Power circuits

  • Analysing and troubleshooting power quality issues

  • Improving power efficiency

  • Managing energy costs

  • Analysing harmonics

  • Optimising power system performance

  • Improving power quality

  • Analysing system data to design optimal upgrades

FAQs

What is meant by power quality problems?


Power quality refers to the ability of electrical equipment to consume the energy being supplied to it in other words to provide stable power. There can be various power quality issues and the most common include electrical harmonics, poor power factor, voltage instability and imbalance impact on the efficiency of electrical equipment.

Supplied with

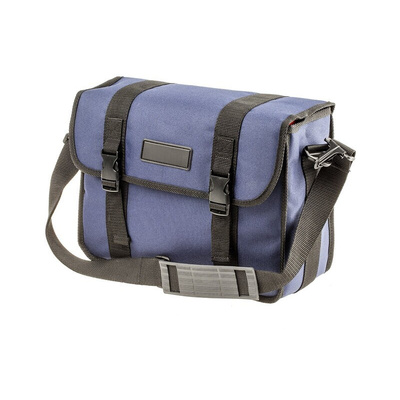

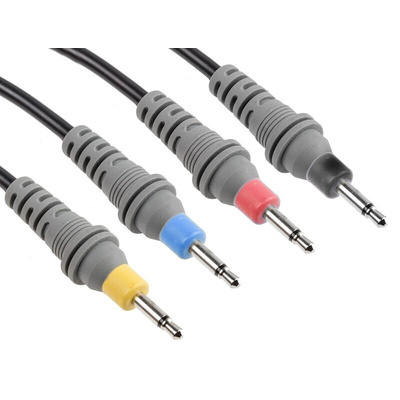

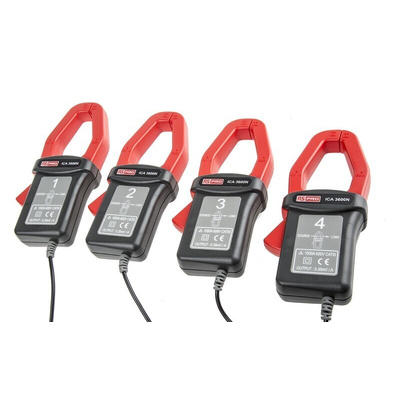

User manual, software on CD Rom, deluxe carrying case, AA 1.5 V battery (x8), AC adapter (110 V > 12 V ; 220 V > 12 V), current clamp transducer (x4, cable length 3 m), crocodiles test leads (blue, yellow, red, black - wire length 3 m)

Техническая спецификация
pdfDatasheet
pdfIPM 3600N 3 Phase Power Analyser Instruction Manual
Абсолютное максимальное измерение мощности:
999.9кВт
Абсолютный максимальный измеряемый ток:
999.9A
Высота:
235мм
Длина:
116мм
Источник питания:
Батарея
Количество фаз:
3
Лучшая точность измерения тока:
±0.5 % ± 15 знаков
Лучший тояность измерения напряжения:
±0.3 % ± 10 знаков
Максимальная частота:
60Гц
Максимальное напряжение:
999.9В
Модель р:
IPM3600N
Рабочая температура - максимальная:
+50°C
Рабочая температура - минимальная:
0°C
Размеры:
116 x 54 x 235мм
Тип батареи:
AA
Тип дисплея:
LCD
Тип измерения:
Переменный ток, Напряжение перем. тока, Мощность переменного тока, Частота, Гармоника, Угол фазы, Мощность энергии, Коэффициент мощности, Обнаружение трехфазной последовательности
Тип интерфейса:
USB
Ширина:
54мм
