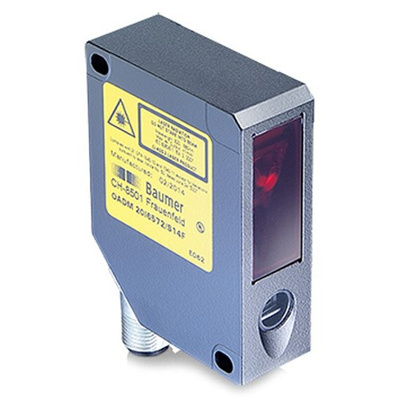

OADM 20I5460/S14C, Baumer Background Suppression Distance Sensor with Block Sensor, 30 → 130 mm Detection Range, Фотоэлектрический датчик

Baumer OADM Laser Distance Measuring

Baumer OADM 20 series laser distance sensors provide a precise output signal with an integrated micro controller. Intelligent internal signal analysis enables the sensors to work accurately regardless of colour and on most surface types. With the small visible laser spot the OADM 20 sensors can be positioned easily and accurately.

Linear photodiode array
Designed for applications requiring continuous and very precise distance information
Resolution (white paper): 0.01mm (50mm range); 0.06mm (130mm range)
Linearity error (white paper) 0.03mm (50mm range) or 0.2mm (130mm range)
Soiling indicator and alarm output
4-20mA analogue and PNP alarm outputs
Output rise time <10ms
675mm wavelength
IP67
M12 5pin connector

Warning

Dangerous when in use Do not look directly at the light output by the laser diode as it may damage your eyes.
