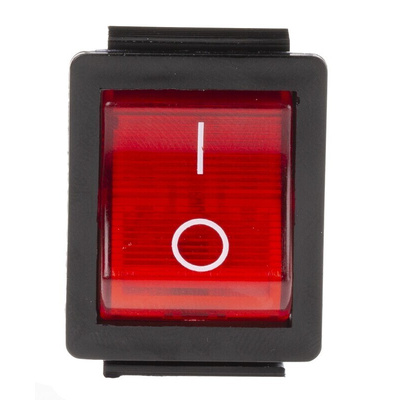

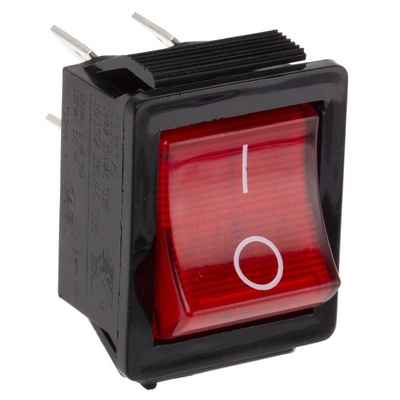

C1353VQNAM, Arcolectric Illuminated Double Pole Single Throw (DPST), On-Off Rocker Switch Panel Mount, Клавишный переключатель

1235198
Номер производителя: C1353VQNAMПроизводитель: Arcolectric
Цена за шт.
1782.00 руб. (С НДС) *
Количество 25+ 50+ 100+ 250+
Цена 1659.00 руб. 1551.00 руб. 1449.00 руб. 1377.00 руб.

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

Illuminated Rocker Switches

A range of standard latching illuminated rocker switches designed for panel mounting. With a choice of red or green illumination, these rocker switches are suitable for a wide range of applications. The snap-in rocker switches are available with a black or white body and can be single or double pole configured, dependant on individual application requirements. The general purpose switches are perfect for everyday use. Suitable for repairing existing equipment or for new designs.

Features and Benefits

• Red or Green Illumination
• 240 Vac operation
• SPST and DPST switch configurations
• Moulded in Nylon 6.6 plastic with a silky textured finish
• Snap-in plastic prongs on the switch sides for secure panel retention
• Connection via push on receptacles
• Easy to operate the smooth rocker actuator

Typical applications for rocker switches

Rocker switches are one of the most frequently used electrical switches in the market today. Due to their simple design and easy operation, rocker switches are found in almost every industry. Some of the most common areas are:

• Automation Control
• Computers and peripherals
• Medical equipment
• Audio video equipment

FAQ

Are the rocker switches easy to connect?

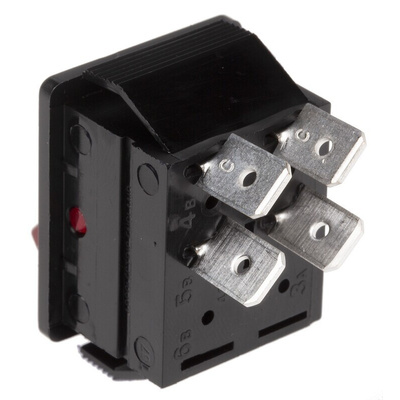

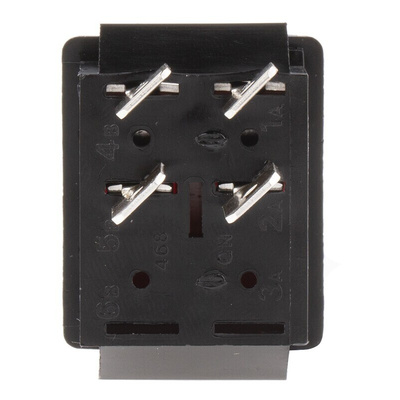

Yes, as the rocker switches have male quick connect 0.250 in (6.35 mm) tab terminals at the rear connection is easy. Simply select the appropriate red, yellow or blue female receptacle crimp connectors according to wire size required.
Are there any recommended tools for cutting the aperture in a panel?
Suitable hole cutters are available separately. Single Pole 614-334 or Double Pole 614-328

Approvals

ENEC

Техническая спецификация
pdfDatasheet
pdfC1353VQNAM Datasheet
Высота выреза в панели:
28.3мм
Конфигурация контактов:
Double Pole Single Throw (DPST)
Номинальный ток контакта:
16 A
Освещенный:
Да
Переменный ток - номинальное напряжение:
125 В, 250 В
Постоянный ток - номинальное напряжение:
72В
Работа выключателя:
On-Off
Размеры выреза в панели:
22.4 x 28.3мм
Тип клеммы:
Push On
Тип монтажа:
Крепление на панель
Форма актуатора:
Прямоугольный
Цвет привода:
Красный
Цвет текста обозначения:
Белый
Ширина выреза в панели:
22.4мм
