FI-525 4812124, Fluke Networks Fibre Optic Test Equipment FI-525 Fiber Inspection Scope

1236403
Номер производителя: FI-525 4812124Производитель: Fluke Networks
Цена за шт.
807600.00 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

Fluke Networks Fibre Optic Test Equipment And Cleaning Kit

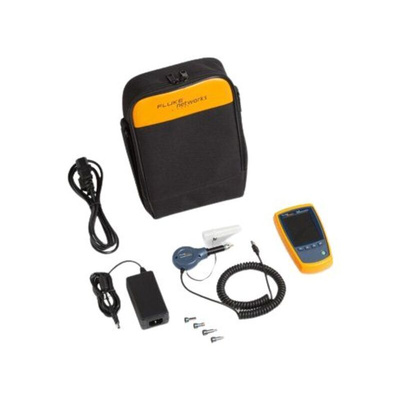

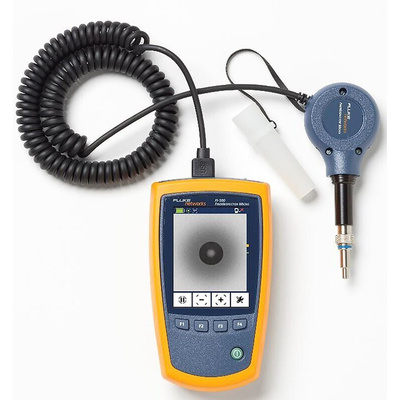

The Fluke Networks FI-525 FiberInspector Micro and cleaning kit for wet and dry cleaning supplies to remove contamination discovered during fibre inspection with the FI-500. This helps in getting rid of the hassle associated with inspecting fibre end faces, especially in low light and high cable density situations. It fills the gap between a manual scope and fully automated inspection scope. It has the simplicity and practicality of a manual inspection scope along with advanced features to reduce troubleshooting and inspection time. It is supplied with 4 UPC tips, case, rechargeable batteries, universal power adapter, cleaning kit (NFC-KIT-BOX) and 1.25mm swabs.

Features and Benefits

Port Bright a built-in flashlight that illuminates dark areas and dense panels
Autofocus feature for stable images in few seconds

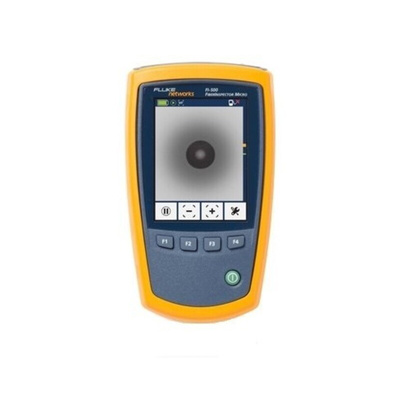

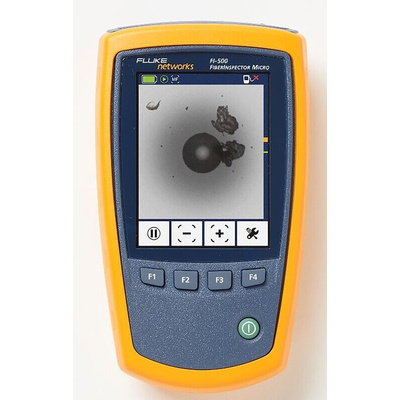

Large display to view single-mode and multimode fibre end faces

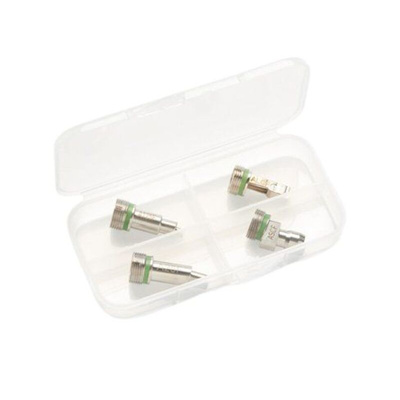

Includes 4 UPC tips (LC, SC, 1.25mm and 2.50mm)

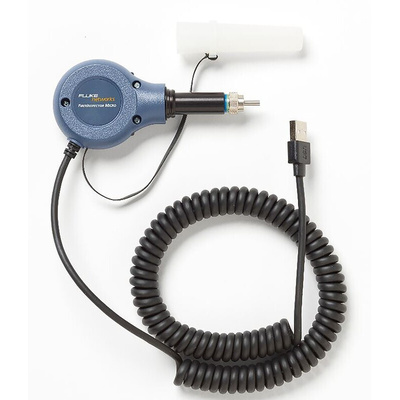

The small-profile probe fits into tight spots and features push button controls for simple operation
APC tips available
3.2in TFT LCD display with resolution 320 x 240
Display magnification options are 1x, 2x, 4x
Display Fps is greater than or equal to 12
2 rechargeable NiMH batteries for display with rating 1.2V and 2700mAh
Power adapter input rating for display is 100VAC to 240VAC ±10% at 50/60Hz with output of 6VDC and 3A
Probe magnification with 200x zoom function has 1x, 2x and 4x settings
Probe 5MP camera with CMOS sensor
Probe field with view of 610μm x 460μm
Probe resolution is 1μm
Light source through LED has life greater than 100000 hours
Coaxial blue LED for end face Illumination
2 white LEDs for port Illumination

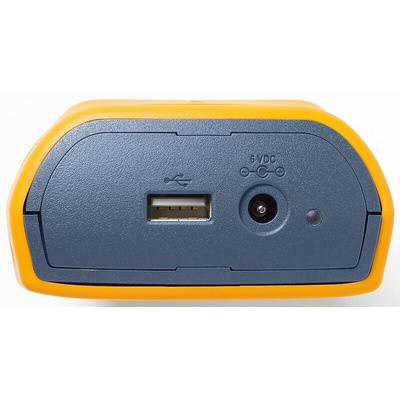

Power to probe is supplied through the USB interface
Probe video output through USB 2.0 interface

Applications

Measure and locate high loss splices
Measure and locate high loss connections and breaks
Locate the end of a fibre
Find potential sources of errors caused by reflectance from dirty or poor connections
Detect live optical signals before it begins testing

Certifications

IEC 61010-1
IEC 62133

Техническая спецификация
pdfDatasheet
Включает в себя:
AC Adapter/Battery Charger, Cleaning Kit, FC Port, Fiber Probe and Display, LC Port, Probe Adapter Tips (1.5 mm Tip Set), Probe Adapter Tips (SC and Universal 2.5 mm Patch Cord Tip), Probe Adapter Tips (ST), Soft Carrying Case
Источник питания:
Батарея, Сетевой
Кабель - тип:
Single Mode & Multimode
Модель р:
FI-525
Оборудование - тип:
Fiber Inspection Scope
Рабочая температура - максимальная:
+40°C
Рабочая температура - минимальная:
0°C
Срок службы батареи:
2 ч
Тип батареи:
NiMH
Тип вилки:
Type B - North American 3-pin
Тип коннектора:
FC Порт, LC Разъем, LC Port, SC, ST
Увеличение:
200
