802, ADAFRUIT INDUSTRIES, 1.8in Arduino Compatible Display with Colour LCD Display

1245444
Номер производителя: 802Производитель: ADAFRUIT INDUSTRIES
Цена за шт.
10044.00 руб. (С НДС) *
Количество 5+ 10+
Цена 9390.00 руб. 9291.00 руб.

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

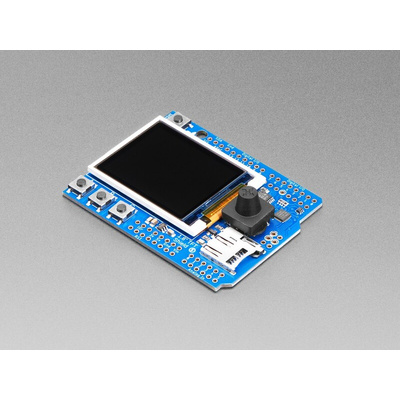

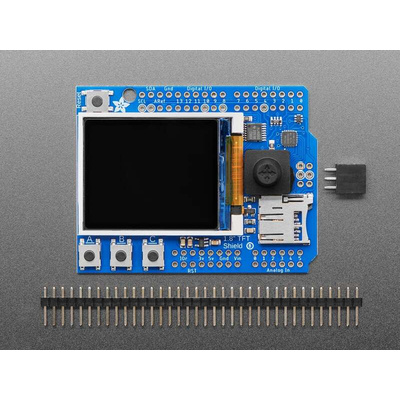

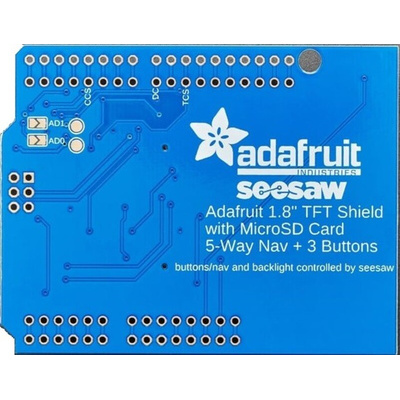

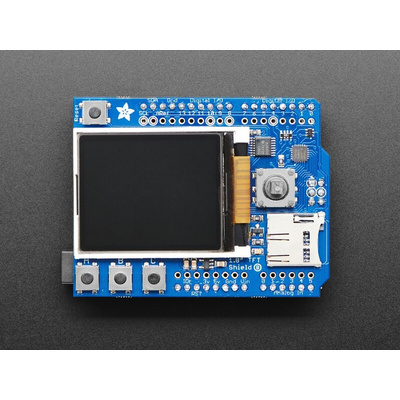

Adafruit 1.8" Colour Display Shield for Arduino

The Arduino 802 is a compact shield which provides a simple way to add both a small screen, micro-SD card slot and a joystick to your Arduino project. The Arduino 802 module is perfect for tinkering and prototyping your ideas.

What is an Arduino Shield?
Arduino shields are add-on boards which sit directly on top of an Arduino board, for example, the Arduino UNO. These Arduino-compatible expansion boards enable to add new functionality to your Arduino board.

The Display:
This Arduino shield features a 1.8" display with 128 x 160 colour pixels. It is a true TFT display offering 18-bit colour with 262144 shades. This means that the Arduino 802 display is colourful with a high refresh rate. This display comes with a white LED backlight.

How do I control it?
The 802 module features a 5-way navigation switch (left, right, up, down, select) connected to Analogue 5 and when using the micro-SD card you will use digital pins 4 and 12. There is also 3 buttons marked A, B and C.
The display uses 4 pins to communicate and has its own pixel-addressable frame buffer, so you can use it without using all the memory or pins.

What is the microSD for?
The Arduino 802 comes with a microSD slot which enables you to loads full-colour bitmaps. You will need a FAT16 or FAT32 formatted microSD card for this (not included).

Which Arduino boards are compatible?
This shield works best with the Arduino UNO and compatible boards. The shield has an ultra-low-dropout 3.3 V regulator and a 3/5 V level shifter so it is safe to use with both 3.3 V and 5 V Arduino boards.
The Arduino 802 shield comes assembled. However, you will need to solder the header onto the shield.

How big is it?
The Arduino 802 measures 68.5 x 53 x 11.8 mm / 2.7 x 2.1 x 0.5 mm. It weighs 22g / 8oz.

Looking for inspiration?
On the Adafruit.com website, there is an open source graphics library that can draw pixels, lines, rectangles, circles, text and bitmaps as well as example code and a wiring tutorial. The code is written for Arduino but it can be ported to another microcontroller.

Note: Display current draw is mostly based on the backlight, with full backlight the current draw is ∼100mA, this does not include the SD Card. SD cards can draw 20-100mA based on read/write. Measure current draw in circuit to get precise numbers.

Adafruit 1.8 Colour Display Shield for Arduino"

This great little shield offers a simple way to add both a small screen, micro-SD card slot and a joystick to your Arduino project. The 1.8 display has 128 x 160 colour pixels and is a true TFT offering 18-bit colour (262144 shades).

The display uses 4 pins to communicate and has its own pixel-addressable frame buffer, so you can use it without using all the memory or pins. The shield has an ultra-low-dropout 3.3 V regulator and a 3/5 V level shifter so it is safe to use with both 3.3 V and 5 V Arduinos.

5-way navigation switch (left, right, up, down, select) connected to Analogue 5 and when using the micro-SD card you will use digital pins 4 and 12.

This shield works best with the Arduino UNO and compatible boards. On the Adafruit.com website, there is a full open source graphics library that can draw pixels, lines, rectangles, circles, text and bitmaps as well as example code and a wiring tutorial. The code is written for Arduino but it can be ported to another microcontroller."

""- 1.8"" diagonal LCD TFT display
- 128 x 160 pixel resolution, 18-bit colour (262144 colours)
- 4 wire SPI digital interface
- Built-in micro-SD slot (card not included)
- 3.3 V or 5 V compatible
- 3.3 V @ 150 mA LDO regulator
- 2 white LED backlight
- Supplied with headers but require soldering
- Display current draw primarily the backlight and with the backlight at full, the current draw is around 100 mA. This does not include the SD card which can draw between 20 mA and 100 mA based on read/write. - Measure current draw in circuit to get precise numbers.
- Board dimensions: 69 x 53.5 x 6.94 mm (2.71"" x 2.1"" x 0.27"")""
