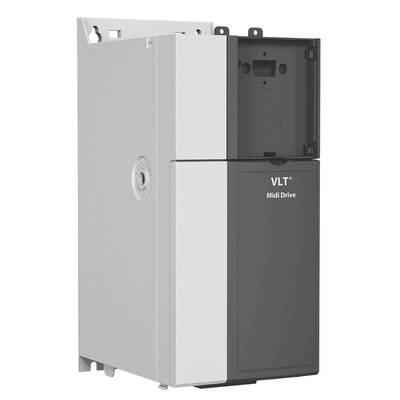

134X0704, Danfoss FC280 Inverter Drive, 3-Phase In, 0 → 500Hz Out, 7.5 kW, 400 V

1250793
Номер производителя: 134X0704Производитель: Danfoss
Цена за шт.
579600.00 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

Inverter VLT FC280

The VLT Midi drive FC280 provides a wide range of features that are designed to make installing, using and maintaining the AC drive as simple and easy as possible. The midi inverter drive is an ideal choice in various applications for its strong control performance, functional safety and flexible fieldbus communication.
The drives are prepared for compatibility with the VLT 2800 for a fast, efficient retrofit.

Features and Benefits

• Compact design for easy and fast installation and set-up
• Delivered without Control panel
• Control panel with LCD available in two versions:
• Savings on cost and space
• Flexibility to suit any task
• Pluggable connectors, integrated DC choke, RFI filter and dual-channel STO functional safety
• Integrated PID controller
• Easy PC connection via integrated USB port
• Fieldbus communication options, depending on model:
- Profibus
- Profinet with dual port
- Ethernet/IP with dual port
- CANopen
- Modbus RTU and FC Protocol are integrated as standard
• Programmable digital and analogue inputs and outputs

Note

Operator panel not included, to be purchased separately

Danfoss VLT FC280 Range

Техническая спецификация
pdfDatasheet
pdfVLT FC 280 Operating Guide
pdfVLT FC 280 Selection Guide
pdfVLT FC 280 Ethernet Programming Guide
Встречающиеся стандарты:
CE, cUL Listed, EMC Compliant, RCM (C-Tick), TUV, UL Listed
Выходная частота:
0 → 500Гц
Габаритная ширина:
168мм
Длина общая:
115мм
Для использования с:
3 Phase Asynchronous Motors and Permanent Magnet Synchronous Motors
Мощность номинальная:
7.5 кВт
Напряжение питания:
400 В
Номинал тока:
12.6 (441 → 480 В) A, 15.1 (380 → 440 В) A
Общая глубина:
272.5мм
Панель управления:
Да
Серия:
FC280
Специальные функции:
Fault Condition Monitoring, Operational Status Reporting, Programmable, Safety Feature, Serial Communication Capabilities
Степень защиты IP:
IP20
Температура окружающей среды:
0 → +45 (Full Constant Output Current) °C, 0 → +55 (with Derating) °C
Тип монтажа:
Крепление на панель
Тип привода:
Adjustable Frequency
Тип связи полевой шины:
Ethernet/IP
Фаза:
3
Фильтр в комплекте:
Да
Функция:
Motor Control
