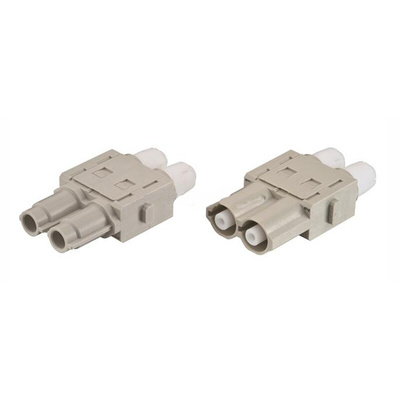

09140023025, HARTING Han-Modular Heavy Duty Power Connector Module, 2 contacts, 16A, Male

1251559
Номер производителя: 09140023025Производитель: HARTING
Цена за шт.
27840.00 руб. (С НДС) *
Количество 10+ 25+
Цена 27144.00 руб. 26448.00 руб.

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

Han HV Module

Male and female Han HV modules for high voltage applications, rated at 16A and can utilise Han E crimp contacts. Each Han HV module accepts two contacts.

Rated at 16A, 5000V
Over 500 mating cycles
Operating temperature range -40 to +125° C

Standards

DINE EN 61984, DIN VDE0115, DIN EN 60664-1

Harting Han® Modular

The Han-Modular series is a system consisting of insert modules and frames into which the insert modules fit. These in turn may be fitted to standard Han® housings. The system allows a variety of insert configurations within the one connector assembly. The Han-Modular system is designed to meet specific requirements of individual customers and offers flexibility when considering connections for signal, power & pneumatic lines when a solution is required with one connector Apart from the quality of the crimp connector, the right choice of the assembly tool is the basic element of a reliable connection. HARTING offers appropriate crimping tools for different levels of automation for all connectors.

Техническая спецификация
pdf1251559 Datasheet
pdfDatasheet
Диапазон:
Han
Кол-во контактов:
2
Количество рядов:
1
Номинал тока:
16A
Номинальное напряжение:
2.5 кВ
Род:
Male
Серия:
Han-Modular
Тип:
Connector Module
