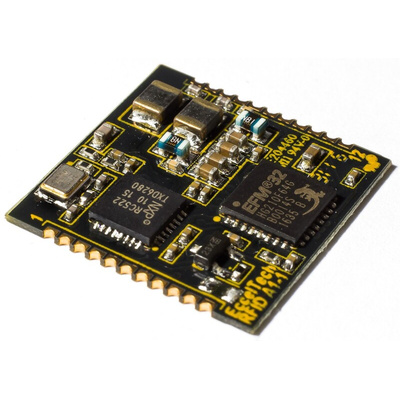

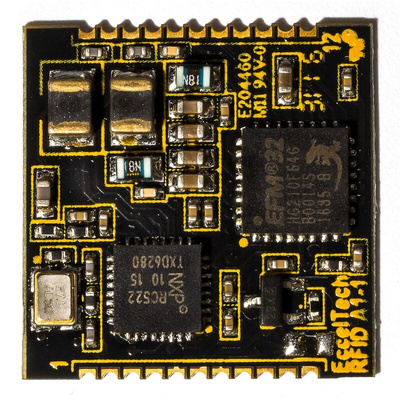

RFID-A1 Module

The RFID A1 module is a 13.56MHz sub assembly from Eccel Technology Ltd. The product is suitable for embedded applications where RFID capability is needed. On board is a low power ARM microcontroller which helps manage the RFID configuration setup and provides a powerful command interface.

Features:

•Low cost RFID Reader with Mifare Classic, Ultralight and NTAG2 support
•Command interface via I2C and SPI
•I2C speed up to 400kHz
•SPI speed up to 500kHz
•Compact form factor
•Castellated SMT pads for easy and reliable PCB mounting
•High transponder read and write speed
•Low power design
•Single operating voltage: 2.5V to 3.6V
•-25°C to 85°C operating range
•AES-128 encryption engine
•RoHS compliant

Applications:

•Access control
•Monitoring goods
•Approval and monitoring consumables
•Pre-payment systems
•Managing resources
•Connection-less data storage systems
