BSN4090DDUHP2BDT R BE4L5, NSK 40mmPlain Angular Contact Ball Screw Support Bearing 90mm O.D, Шарикоподшипник

1349103
Номер производителя: BSN4090DDUHP2BDT R BE4L5Производитель: NSK
Цена за 1 пару
193302.00 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

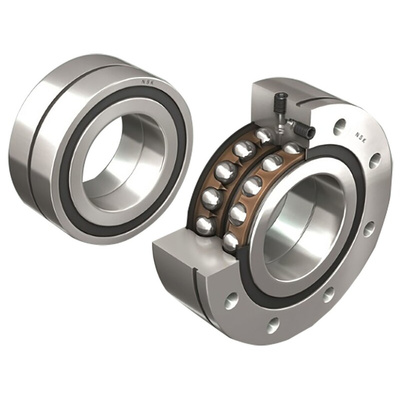

Ball Screw Support Bearings - BSN Series

The BSN series of ball screw support bearings are double row, angular contact thrust ball bearings, with a 60° contact angle. They are equivalent to two single row bearings in a back-to-back arrangement, with a single outer ring. Bearings are supplied ready to be mounted. They come greased with long life lithium soap grease, with synthetic hydrocarbon base oil. Under normal operating conditions, the bearings are greased for life. A relubrication groove on the outside surface of the outer ring allows the bearings to be relubricated during operation if necessary. The bearings are sealed on both sides. The low friction contact lip seal runs in a grove in the inner ring giving excellent sealing characteristics, while minimising torque and heat generation. Preload is set during manufacture so that the correct loading is achieved when the lock nut is tightened to the recommended torque.

BSN-DT Series

The matched DT pairs are essentially the same as the individual bearings. The two individual bearings have been matched together in the paired version. Both bearings have a V-shaped mark on the outer diameter to ensure that they are arranged correctly.

Features and Benefits

•60° Contact angle enabling the bearings to support large axial forces
•Double row to support axial force in two directions
•Contact lip seal provides excellent sealing with low friction and heat generation
•Greased for life (under normal operating conditions)

Product Application Information

Ideal for use in machine tools.

Ball Screw Support Bearings

Техническая спецификация
pdfDatasheet
Диаметр - внутренний:
40мм
Динамическая грузоподъемность:
122кН
Количество рядов:
2
Материал:
Сталь
Наружный диаметр:
90мм
Подшипник - тип:
Угловой контакт
Статическая грузоподъемность:
269кН
Тип кольца:
Plain
Тип окончания:
Sealed
Тип отверстия:
Parallel
Ширина кольца:
92мм
