78502-0101, FLIR E75 Thermal Imaging Camera, 0 → +650 °C, -20 → +120 °C, -20 → +650 °C, 320 x 240pixel, Тепловизор

1353293
Номер производителя: 78502-0101Производитель: FLIR
Цена за шт.
2129700.00 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

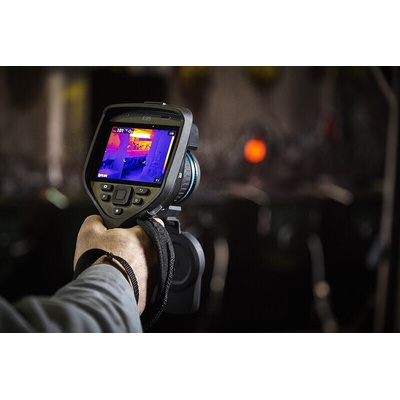

FLIR EXX Series™ Advanced Thermal Imaging Cameras

FLIR EXX Series combines all the latest thermal imaging and communication features. The thermal camera offers superior sensitivity and a true 42° field of view in a user-friendly hand held platform. These cameras through infrared can detect even subtle indications of building deficiencies and moisture intrusion. They can offer on-screen area measurement so you can easily quantify and document air leaks, moisture and other building problems. A large touchscreen provides intuitive menu navigation and new technology allows lenses to be added or shared without factory recalibration.

Features and Benefits:

• MSX® image enhancements add perspective to scenes, with edge detail on windows and doors
• 5 MP digital camera mode
• Built-in voice annotation and customisable work folders make finding images easier
IR resolution 320 x 240 pixel
• 4" optically bonded PCAP touchscreen with 160° viewing angle
• Rugged, water-tight chassis and scratch resistant Dragontrail™ cover glass
• Fast, precise laser-assisted autofocus
• Grip, trigger and buttons designed for easy one-handed operation
• Sensitive enough to identify hidden building deficiencies
• On-screen area measurement (E85, E95)
• WiFi, METERLiNK® connectivity
• True 42° field of view (FOV) lens allows for surveys of wide areas with a single lens, available separately 135-3296

Supplied with

Infrared camera with 24° lens, battery (2), battery charger with power supply, front lens and light protection, hand and wrist straps, lanyards, lens caps (front and rear), lens cleaning cloth, 15 W3 A power supply, printed documentation, 8 GB SD card, torx screwdriver, cables (USB 2.0 A to USB Type-C, USB Type-C to HDMI, USB Type-C to USB Type-C), hard transport case.

Техническая спецификация
pdfDatasheet
pdfUser Manual Flir E75/E85/E95 Series
Вес:
1кг
Диапазон измерения температуры:
0 → +650 °C, -20 → +120 °C, -20 → +650 °C
Лучшая точность измерения температуры:
±2 %
Модель номер:
E75
Применение:
Electrical, Mechanical
Размер дисплея:
4in
Разрешение детектора:
320 x 240пикселей
Разрешение дисплея:
640 x 480пикселей
Температурная чувствительность:
<0.03 при 30 °C
Тип фокусировки:
Автоматический, Ручной
