FLUKE-1736/EUS-GOLD, Fluke 1736/EUS Energy Monitor for Current, Current Harmonic, Frequency, TDD, THD Current, THD Voltage, Unbalance,, Анализатор

1365784
Номер производителя: FLUKE-1736/EUS-GOLDПроизводитель: Fluke
Цена за шт.
899850.00 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

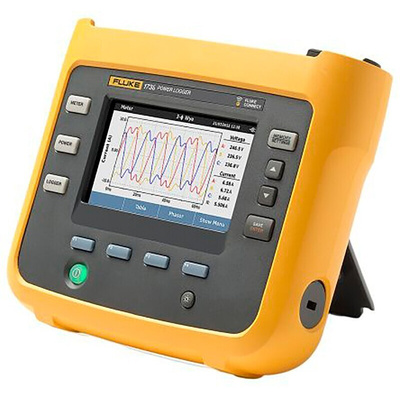

Fluke Power Logger

The Fluke 1736 three-phase power logger EU/US is a state-of-the-art device built with Fluke Connect® mobile app and desktop software compatibility. This gives you the data you need to make critical power quality and energy decisions in real-time. It is the best test tool for conducting energy studies and basic power quality logging. The Fluke 1736 automatically captures and logs over 500 power quality parameters so you have more visibility of the data you need to optimise. An optimised user interface, flexible current probes, and an intelligent measurement verification function reduce measurement inaccuracies by digitally verifying and correcting common connection errors. It makes the setup easier and reduces measurement uncertainty. It also lets you access and share data remotely with your team via the Fluke Connect® app for maintaining safer working distances and making critical decisions in real-time, reducing the need for protective equipment, site visits and check-ins. You can easily chart and graph measurements to help identify issues and create detailed reports with the included Fluke energy analyse plus software package.

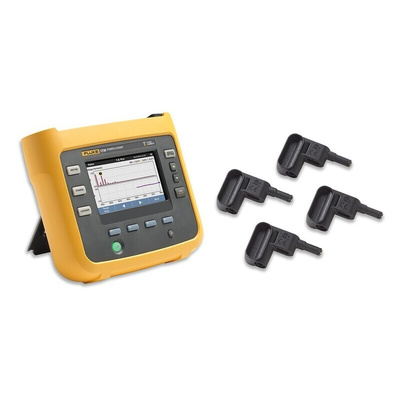

Fluke 1736 power logger (EUS gold version)
Save money when you buy the Fluke 1736 energy monitor and logger, Fluke 173x Flexi 1500 iFlexi 1500A 12 in x 4 and MP1-magnet probe 1 together in this great value bundle.

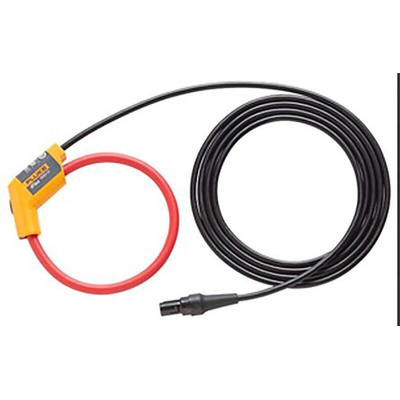

4 x Fluke 173x Flexi 1500 iFlexi 1500A 12in
Energy or power logger to 1500A ac while providing the ultimate measurement flexibility. The iFlex probes connect directly to the logger, displaying current measurements without error prone scaling factors. The 1.8m cord allows separation between the measurement location and the energy logger making it easier to view the display.

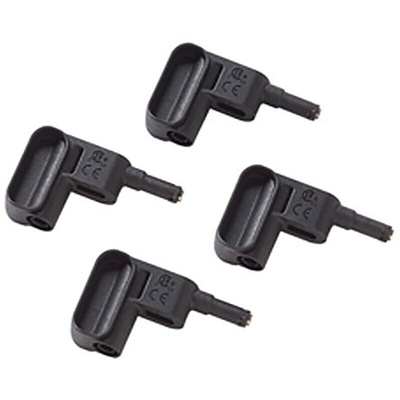

MP1-Magnet Probe 1
Magnetic probe tips for voltage test leads with 4mm banana connectors.

Features and Benefits

Line cord: EU, US, UK
Colour LCD display: 4.3in active matrix TFT, 480px x 272px, resistive touch panel
Voltage range: up to 1000V
Current range: 4A to 6000A
Frequency: 42.5 to 69Hz
Comprehensive logging
Power instrument directly from the measured circuit
Highest safety rating in the industry: 600 V CAT IV/1000 V CAT III rated for use at the service entrance and downstream
Interfaces: USB-A, Wi-Fi, Bluetooth, USB-mini
More visibility, reduced uncertainty, and better power quality and energy consumption decisions

Applications

Load studies: verify electrical system capacity before adding loads
Energy assessments: quantify energy consumption before, and after improvements, to justify energy saving devices
Harmonics measurements: uncover harmonic issues that can damage or disrupt critical equipment
Voltage and current event capture: monitor for dips, swells and inrush currents that cause false resets or nuisance circuit breaker tripping

Certifications

CE
CSA certified

Техническая спецификация
pdfFluke 1736 and 1738 Three-Phase Power Loggers
Измерение максимального напряжения:
1000В
Измерение параметров:
Ток, Гармоника тока, Частота, TDD, THD Ток, THD Напряжение, Дисбаланс, Напряжение, Гармоника напряжения
Источник питания:
Батарея
Количество входных каналов:
4
Рабочая температура - максимальная:
+50°C
Рабочая температура - минимальная:
-10°C
Срок службы батареи:
4 Hours
Тип батареи:
Rechargeable Lithium-Ion
Тип дисплея:
LCD
Тип интерфейса:
Bluetooth, USB, Wireless
Тип регистратора данных:
Energy Monitor
