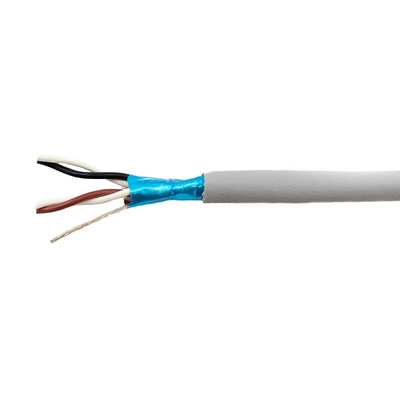

78162 SL005, Alpha Wire 2 Pair Screened Multipair Industrial Cable 0.15 mm²(CE, CSA, UL) Grey 30m EcoCable Mini Series, Кабель

1368493
Номер производителя: 78162 SL005Производитель: Alpha Wire
Цена за 1 катушку (30 метров)
53283.00 руб. (С НДС) *
Количество 5+ 10+
Цена 50886.00 руб. 48489.00 руб.

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

Alpha Wire EcoCable Mini - 300 V Foil Shielded, Multipair

The foil shielded EcoCable Mini range from Alpha Wire is a 300 Volt electrical cable which is fully recyclable due to its mPPE sheath and insulation construction. This stranded cable can handle extreme temperatures, contains zero halogens and is smaller and lighter than its PVC equivalent. Foil shielded cables consist of an aluminium/polyester shield and a tinned copper drain wire. Cables can be lighter and smaller with moderate resistance to EMI.

Features and Benefits

Temperature Range: -40°C to +80°C
Tinned copper conductors
mPPE insulation and jacket
Zero halogen
Specific gravity: 1.03
100% recyclable
Low outgassing
Available in several sizes of AWG
Foil shielding

How do communication cables work?

Communication cables work by sending information between two points, often at long distances via their copper conductors or optical fibres. Data communication requires clean transmission with little to no interference from external sources.

What is mPPE?

mPPE is a modified polyphenylene ether thermoplastic. Cables made from mPPE have a smaller wall thickness than other cables due to their dielectric properties. The fact that the cables are lighter allows them to be used in many different applications.

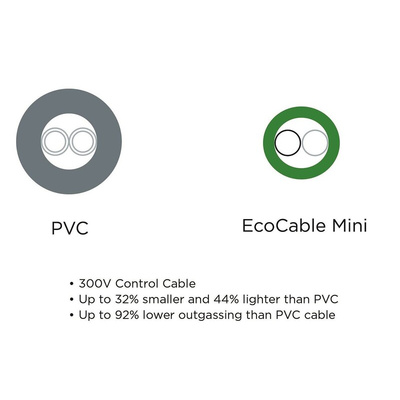

mPPE has a lower specific gravity compared to other jacket and insulation materials such as PVC and PE. This combined with the excellent dielectric properties allow the cables to be up to 65% lighter and thinner than conventional cables.

Product Application Information

Communication cables are used in a wide range of applications such as radio transmitters, electronic circuits, telecommunication, automation and studios. They are also suitable for use in NFPA 79 applications. The purpose of NFPA 79 is to provide safeguards for industrial machinery and to protect operators, equipment, facilities, and work-in-progress from fire and electrical hazards.

Approvals

• UL AWM 21460 • UL VW-1 • CSA I A/B FT1 • CE • RoHS • REACH • WEEE • ISO 10993-5

EcoCable Mini 300 V Foil Shield, Multipair

Conductors: 2, White/Black, White/Brown
Nominal Diameter: 0.150 inch (3.81 mm)
Jacket Thickness: 0.015 inch (0.38 mm)
Stranding: 19/38
Insulation Thickness: 0.007 (0.18 mm)
26 AWG (0.154 mm²)
Jacket Colour: Slate

Техническая спецификация
pdfDatasheet
pdfEcoGen Brochure
Американский размер проводов:
26 AWG
Внешний диаметр:
3.81мм
Волновое сопротивление:
65 Ом
Встречающиеся стандарты:
CE, CSA, UL
Длина:
30м
Жилы:
19/38
Кабель - тип:
Витая пара
Количество пар:
2
Материал внешней оболочки:
MPPE
Номинальное напряжение:
300 В
Площадь поперечного сечения:
0.15 мм²
Серия:
EcoCable mini
Тип экрана:
Фольга
Характеристика горения:
Low Smoke Zero Halogen (LSZH)
Цвет оболочки:
Серый
Экранированный/неэкранированный:
Screened
