PEXSAT34RH, Startech 4 port PCI Express RAID Controller Card

1383562
Номер производителя: PEXSAT34RHПроизводитель: Startech
Цена за шт.
35589.00 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

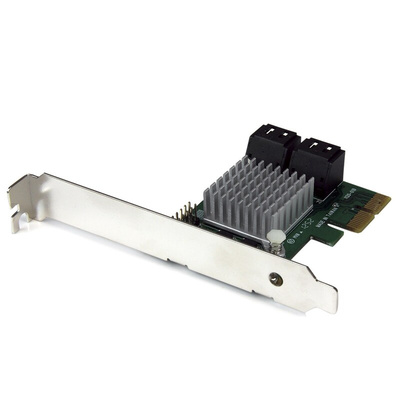

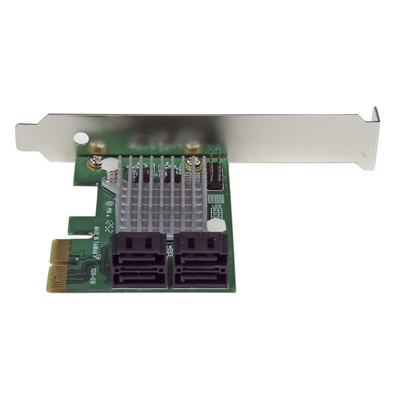

PEXSAT34RH PCI Express SATA Controller Card

The PEXSAT34RH 4-Port PCI Express 2.0 SATA Controller Card with HyperDuo adds 4 AHCI SATA III ports to a computer through a PCIe slot (x2), delivering multiple internal 6Gbps connections for high-performance hard drives and Solid State Drives (SSDs).

Featuring HyperDuo technology, the SATA card offers SSD auto-tiering which lets you balance the performance advantages of SSD storage with the cost-effectiveness and large capacity of standard hard drives. By combining SSD and HDD drives into a single volume (up to 3 SSD + 1 HDD), HyperDuo discreetly works in the background to identify and move frequently accessed files to the faster SSD drive(s) for improved data throughput - up to 80% of SSD performance! (Note: The HyperDuo automatic storage tiering feature is compatible with computers that use a BIOS.)

The PCIe SATA controller card supports Port Multiplier (PM), enabling multiple SATA drives to be connected to one port over a single cable, for a total of 7 drives (Up to 4 drives through PM on one port, and a single drive to the remaining 3 ports). Plus, the SATA controller card offers an effective hardware RAID solution, with native RAID (0, 1, 1+0) support.
\t
Drives Used:
SSD: OCZ Vertex 3 Series 2.5” 120 GB (VTX3-25SAT3-120G)

HDD: Western Digital Caviar Green 3.5” 2 TB (WD20EARS)
\t\t\t
Software Used:
IO Meter, 256KB Sequential Read, queue depth = 10
\t\t
This PCIe SATA 6gbps card is backed by a 2-year StarTech.com warranty and free lifetime technical support.

Features & Benefits

• Supports HyperDuo SSD auto-tiering
• 4 AHCI SATA III (6Gbps) ports through PCI Express x2
• Fully compliant with SATA 3.0 specifications and backward compatible with SATA I/II (1.5/3.0Gbps) drives
• Supports hardware RAID 0, 1, and 1+0 modes configured through BIOS
• Compliant with PCI Express 2.0 standards
• Port Multiplier FIS-based and Command-based switching supported
• Natively supported single chipset design
• Simple HyperDuo configuration via card-BIOS level or intuitive GUI console (Windows® only)
• Supports Native Command Queuing (NCQ) and ATA/ATAPI commands

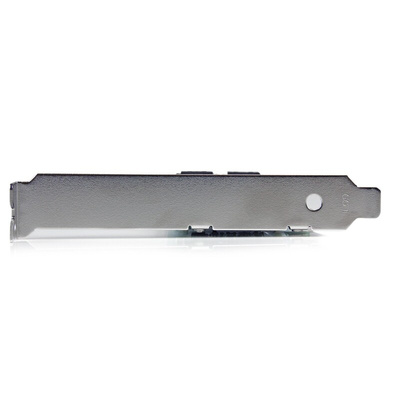

• Includes Low Profile/Half-Height installation bracket
• Supports HDDs/SSDs/Optical/Blu-Ray drives
• LED headers for HDD activity LED indicators
• Leverage SSD performance and standard HDD capacity with HyperDuo technology
• Maximise system capability with SATA III connection speeds
• Fit any standard or low profile chassis with included brackets

Applications

• Use SSD tiering to optimize your system for I/O intensive such as Office Suites, Photo/Video Editing and Media Players
• Upgrade an older PCIe-based system to SATA 6Gbps capability, to better utilize faster SATA drives
• Add more internal SATA ports to a computer system, to connect additional storage drives and/or optical drives
• Provide optimized off-site back-ups/vaulting, through built-in RAID 1 capability
• Perfect for multi-drive internal RAID storage solutions

What’s in the package?

• PCIe SATA Controller Card
• Low Profile Bracket
• Driver CD
• Instruction Manual

Hard Drive Controller Cards

Техническая спецификация
pdfPEXSAT34RH Datasheet
Количество поддерживаемых приводов:
4
Размеры:
120 x 70 x 20мм
Тип:
PCI Express RAID Controller Card
