SAT2IDEADP, Startech 2.5 in, 3.5 in IDE to SATA Converter

SAT2IDEADP SATA to IDE Adapter

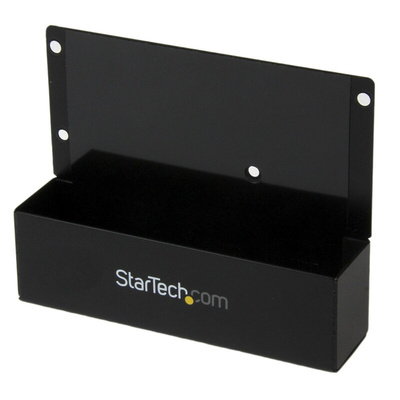

The SAT2IDEADP SATA to IDE hard drive adapter enables you to use your 2.5-inch/3.5-inch IDE-based (PATA) hard drives in most StarTech.com SATA-based HDD docking stations and drive duplicators. The SATA-IDE adapter features all-metal construction that ensures maximum durability, and is fully compatible with IDE hard drives up to ATA-133 (133MBps).

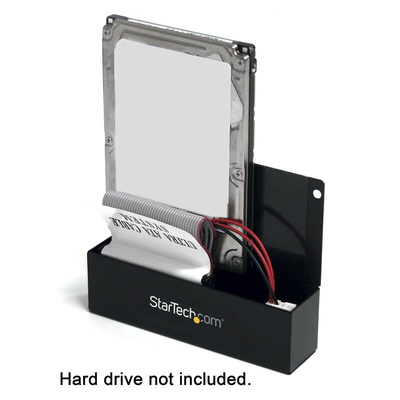

The unique mounting style of the SATA/IDE adapter enables it to be easily mounted to an IDE/ATA hard drive, and inserted into a SATA hard drive dock bay, for quick and easy retrieval of data from older HDDs. The adapter can also be used to install IDE hard drives into SATA-only desktop computers, or any other scenario that requires an IDE hard drive to be connected through Serial ATA.

Backed by 2-year warranty and free, lifetime technical support.

Features & Benefits

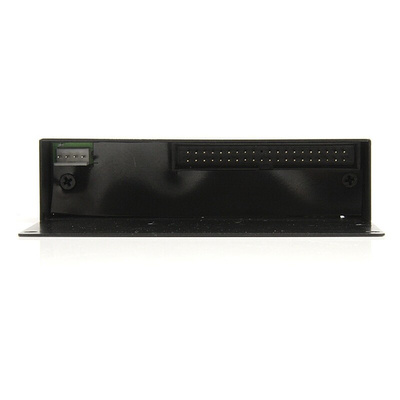

• Supports 40-pin (3.5in) and 44-pin (2.5in) IDE hard drives
• Durable, metal construction
• Compatible with most 3.5in StarTech.com SATA hard drive docking stations and duplicators
• Large capacity hard drive support, with 48-bit LBA
• Compliant with SATA revision 1.0
• Compatible with PATA (IDE) 66/100/133 MBps hard drives
• Mounting holes for both 2.5in and 3.5in form factor IDE hard drives
• Unique design allows any 2.5/3.5in IDE hard drive to be used and inserted (upright) into a SATA HDD docking station or duplicator drive bay
• Backed by a StarTech.com 2-year warranty and free lifetime technical support

Applications

• Use old IDE/PATA hard drives in a SATA hard drive docking station
• Install an IDE/PATA hard drive into a computer with only SATA ports
• Easily recover data from a 2.5in (laptop) IDE hard drive, by connecting it to a SATA-enabled computer or docking station
• Technicians who are required to work with a wide variety of old and new technologies

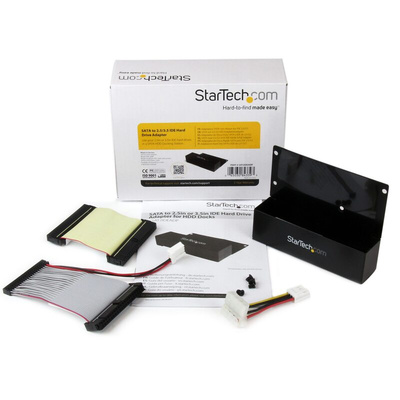

What’s in the package?

• SATA to IDE adapter
• 40-pin IDE cable
• 40-pin to 44-pin IDE cable with power
• SP4 to LP4 Power cable
• Package of mounting screws
• Instruction Manual

SAT2IDEADP Datasheet
