ET90110ST2, Startech 10/100Mbit/s RJ45, ST Multi Mode Media Converter Half/Full Duplex 2km

ET90110ST2 Fibre Media Converter

The ET90110ST2 10/100 Mbps Multimode Fibre Media Converter (ST, 2 km) lets you extend a Fast Ethernet network (10/100 Mbps) over multimode fibre, at distances of up to 2 km (1.2 miles).
A cost-effective solution for connecting a 10/100 Mbps Ethernet (10/100Base-T) network to remote network segments over a 100Base-FX fibre backbone. Designed to offer a durable and convenient Ethernet to fibre solution, the Ethernet to ST Fibre converter features an all-steel chassis, and a simple plug-and-play installation with minimal configuration required.
For added versatility, this fibre media converter supports standalone operation, or installation into the 20 Slot, 2U Rackmount Chassis (ETCHS2U).
Backed by a StarTech.com 2-year warranty and free lifetime technical support.

Features & Benefits

• Supports standalone operation, or installation into the ETCHS2U Rackmount Chassis
• Cost-effective way to extend/bridge networks using fibre cabling
• Advanced features include Link-loss forwarding, remote monitor status, two frame lengths
• Supports a maximum fibre cable length of 2 km
• Supports full or half-duplex operation
• Quick and simple installation, easy to use
• Link loss forwarding, remote status monitoring help ensure maximum up-time
• Provides Ethernet to Fibre conversion as a standalone device, or can be installed into the ETCHS2U 20 slot chassis for added versatility
• Rugged steel casing for durability in harsh environments

Applications

• Provides connectivity to a user or network segment that is in an isolated area of a large complex or in another building altogether
• Perfect for secure connections required by government agencies where EMI is not acceptable
• Connect traffic control/monitoring systems at extreme distances to the main office
• Extend network connectivity to remote areas of stadiums, auditoriums or other venues
• Converts 100Base-FX fibre optic signals to 10/100Base-T Ethernet over multi mode fibre cable

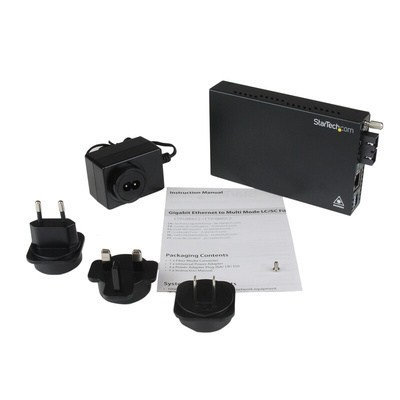

What’s in the package?

• Fibre Media Converter
• Universal Power Adapter (NA/EU/UK/AU)
• Grounding Screw
• Instruction Manual

Fiber Media Converters

ET90110ST2 Datasheet
