0601066J00, Bosch GCL 2-15 G Laser Level, Лазерный уровень

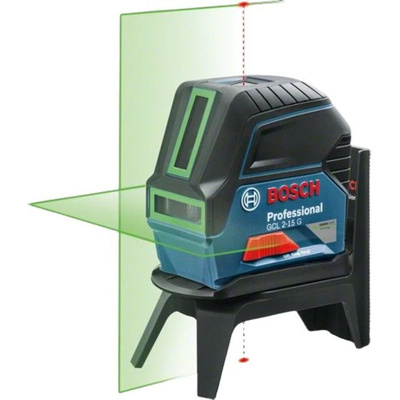

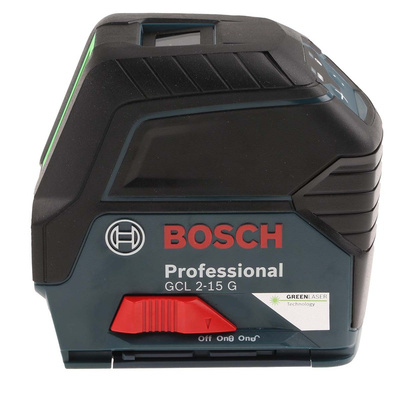

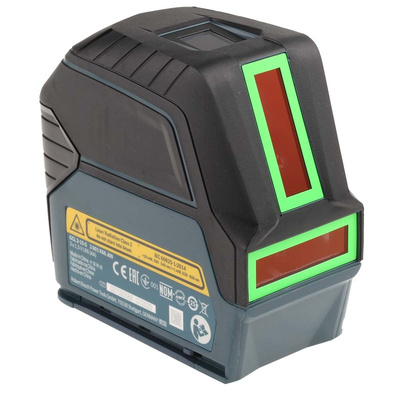

Bosch GCL2-15 G Combi Line & Point Laser

Introducing the Combi Laser GCL 2-15 G Professional from Bosch that combines the advantages of point and cross-line lasers in one tool, simplifying any levelling or transfer work over short distances with an accuracy of ±0.3mm/m. The GCL 2-15G laser lines are highly visible for fast horizontal or vertical levelling tasks. With the aid of the included RM1 rotating mount, the user can easily position the laser lines around the plumb points - making levelling tasks faster, more precise and more convenient. When working in areas with bright ambient light, such as near windows, the green laser diodes of the Bosch GCL 2-15 G Professional combi laser can be seen significantly more clearly than the red laser lines of other tools on the market. The different wavelengths of the two colours mean that the luminous efficacy of green light is higher than that of red light – thus making the laser line brighter and easier to see by the human eye. Whereas turning the light from red laser diodes green has previously required laborious conversion procedures, the GCL 2-15 G Professional works with a pure green laser diode. This type of diode is also more powerful, gives the tool a longer service life thanks to its lower operating temperature, and makes the tool more compact than those that use colour conversion.

Bosch GCL2-15 Combi Line & Point Laser is available in two Laser Beam Colour options:
• 144-6649 - GCL 2-15 Red Laser Colour
• 144-6650 - GCL 2-15 G Green Laser Colour (increased visibility)

Features and Benefits:

• Green Laser Beam Light for increased visibility
• Compact and versatile for all short-distance levelling applications
• Horizontal and vertical laser lines and two-centred plumb points with optimal visibility
• Laser lines can be positioned around the centred plumb points
• Flexible to use with rotating RM 1 Professional multifunctional mount for aligning the laser lines and for versatile mounting of the tool
• Pendulum lock ensures safe transport
• Easy handling due to single-handed operation and intuitive user interface
• Line and point mode freely selectable
• Horizontal and vertical self-levelling up to ±4°

Technical Specification:

• Laser diode: 630 – 650 nm, < 1mW
• Operating temperature: -10 – 50 °C
• Storage temperature: -20 – 70 °C
• Laser class: 2
• Working range: 15 m
• Accuracy: ± 0.3 mm/m
• Working range of laser points, max.: 10m (top) / 10m (bottom)
• Self-levelling range: ± 4°
• Levelling time: 4 secs
• Dust and splash protection: IP 54
• Power supply: 3 x 1.5 V LR6 (AA)
• Operating time (max.): 6 h in cross-line and point mode; 8 h in a cross-line mode; 12 h in line & point mode; 16 h in line mode; 22 h in point mode

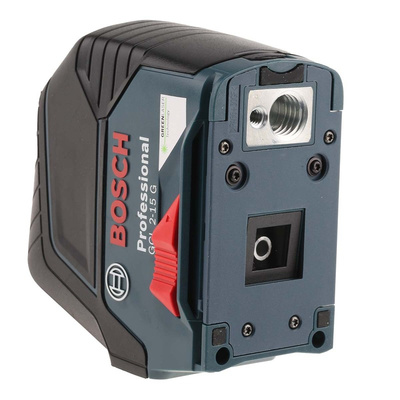

• Tripod thread: 1/4", 5/8"
• Weight, approx.: 0.49 kg
• Length: 130 mm
• Width: 83 mm
• Height: 162 mm
• Colour of laser line: Green
• Projection: 2 lines / 2 points
• Plumb point accuracy: ± 0.7 mm/m

Typical Applications:

Laser Levels can be used for many professional construction jobs and household applications, e.g:
• Tiling
• Wallpapering
• Interior decorating
• Panelling
• Kitchen Installation
• Bathroom Installation
Where-ever precision levelling is required, a digital laser level can save you time and prevent mistakes.

FAQs:

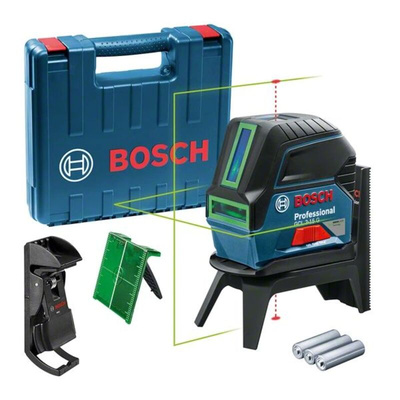

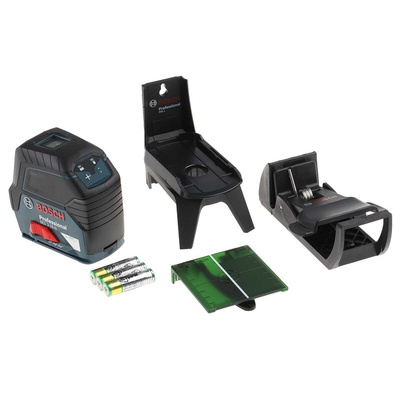

What do I get in the set?
• 1x GCL 2-15 G Combi Laser

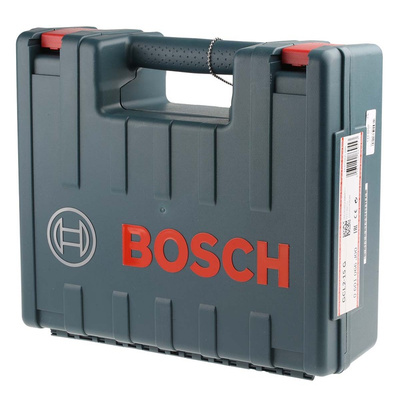

• Carrying case
• Ceiling clamp
• 1/2 L-BOXX inlay for tool
• Laser target plate
• Rotating mount RM 1 Professional
• 3 x 1.5 V LR6 battery (AA)

1446650_Data Sheet

Manual
