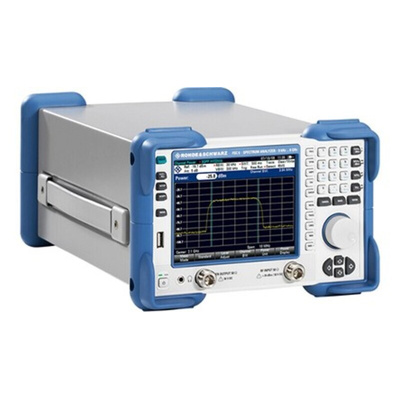

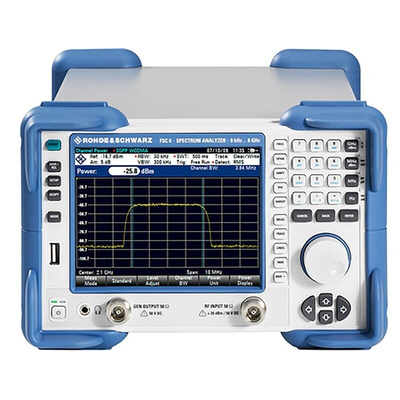

Rohde & Schwarz FSC-P4 Desktop Spectrum Analyser, 9 kHz → 6 GHz, Анализатор спектра

Rohde & Schwarz Spectrum Analyser

The Rohde & Schwarz spectrum analyser has 1 channel and its operating frequency ranges from 9kHz and 6GHz. It is a compact and cost-efficient analyser that covers a wide range of applications from simple development tasks and production to training RF professionals. This analyser features several functions for simplifying and speeding up the development and testing of RF products. Its RF characteristics and high measurement accuracy ensure reliable and reproducible measurement results. It as a compact design and hence takes up a minimum amount of space on a lab bench. It also has an optional preamplifier is available that increases sensitivity for measuring weak signals.

Features and Benefits

Resolution bandwidth ranging between 10Hz and 3MHz
High sensitivity as noise is less than -141dBm (1Hz)
Optional preamplifier is less than -161dBm (1Hz)
High third order intercept is greater than 10dBm, typically 15dBm
Low measurement uncertainty (< 1 dB)
Internal tracking generator
Compact dimensions
Low power consumption (12W)
Storage of measurement results on USB stick

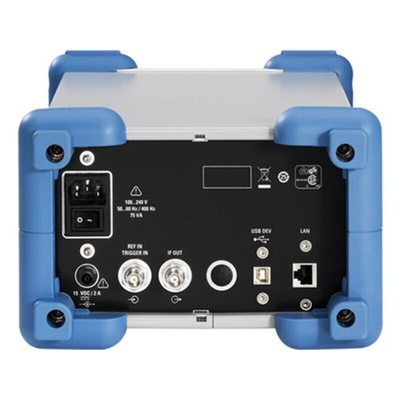

LAN and USB interface for remote control and transfer of measurement data
Length is 233mm, width is 350mm and height is 158.1mm

Applications

Telecommunication
Electronics laboratories
Educational institutes
Electronics designing
Service and maintenance

Certifications

VDE certified
GS certified
CAN/CSA-C22 certified
cCSAus certified
UL 61010-1 approval
IEC 61010-1
EN 61010-1
ISO9001
ISO14001
IEC 60068-2-30
IEC 60068-2-6
IEC 60068-2-64
IEC/EN 61326-1
IEC/EN 61326-2-1
CISPR 11/EN 55011
IEC/EN 61000-3-2
IEC/EN 61000-3-3
