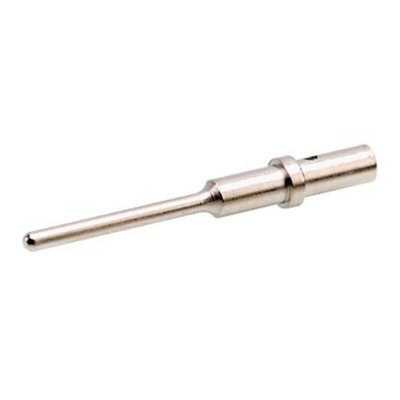

AT60-202-20141, Amphenol Industrial, ATM Male

1511295
Номер производителя: AT60-202-20141Производитель: Amphenol Industrial
Цена за шт. (норма упаковки 10 шт)
114.00 руб. (С НДС) *
Количество 10+ 100+ 250+ 500+ 1000+
Цена 114.00 руб. 87.00 руб. 81.00 руб. 78.00 руб. 63.00 руб.

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

ATM Series connectors are a high-performance, cost-effective solution specifically designed for smaller AWG applications. The connector design incorporates an integral latching system that ensures a definitive electrical and mechanical connection. Connector housings are manufactured with a thermoplastic material that is not only durable, but has excellent UV resistance, dielectric/mechanical properties and environmentally RoHS compliant.

Operating temperature range: -55°C to +125°C at rated current
Dielectric Value Meets or exceeds 1500 volts minimum
Continued continuity without degradation to mechanical or physical attributes following vibration
Minimum pull-out force of 89 lbs
Insulation resistance at 25°C shall be greater than 20 megohms when 1000 VDC are applied
100 Mating Cycles Durability

Техническая спецификация
pdfDatasheet
Род:
Male
Серия:
ATM
