930058101, Hirschmann Test & Measurement Red Male Banana Plug - Screw Termination, 60V dc, 16A

1560042
Номер производителя: 930058101Производитель: Hirschmann Test & Measurement
Цена за шт. (норма упаковки 5 шт)
483.00 руб. (С НДС) *
Количество 5+ 50+ 125+ 250+
Цена 483.00 руб. 447.00 руб. 411.00 руб. 375.00 руб.

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

4 mm laboratory range, VQ20 Fully Mating Connector

L. 59.5 mm
Fully mating connector, hardwearing, flexible insulating sleeve with through hole
The tapering ferrule end prevents the conductor from kinking.
Screw connection up to maximum conductor cross-section of 1.5 mm2.
Nickel-plated brass contact material.

Hirschmann Test & Measurement Banana Plug

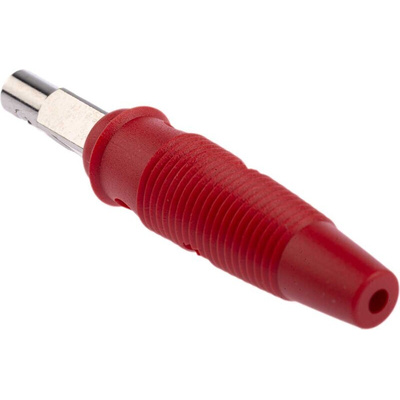

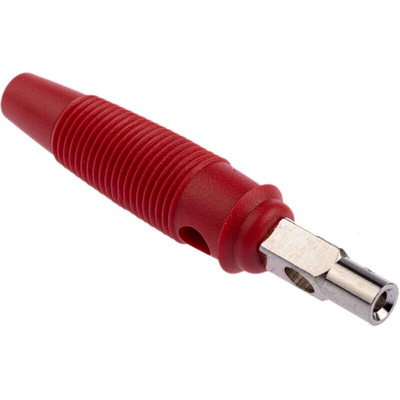

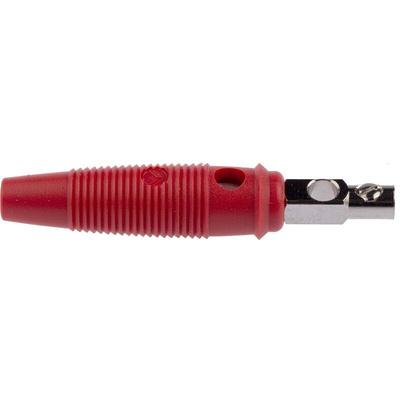

The Hirschmann Test & Measurement red banana plug is a male, spring-loaded, fully mating, pin connector. It has a shatterproof and a flexible insulated sleeve. The connector has a voltage rating of 30VAC,60VDC with a current rating of 16A. The tapering sleeve end also serves as kinking protection for the lead. The socket in the rear allows other 4mm plugs to be stacked in-line.

Features and Benefits

Nickel-plated brass contact material
PVC insulation material
Screw connection up to maximum cable cross-section of 1.5mm²
Length is 59.5mm

Applications

Electrical connections
Electronic connections

Certifications

ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007

Длина:
59.5мм
Концевая заделка:
Винт
Материал изоляции:
PVC-P
Материал контактов:
Латунь
Номинал тока:
16A
Номинальное напряжение:
60В пост. тока
Покрытие контактов:
Никель
Пружинный контакт:
Да
Размер разъема:
4 мм
Род:
Male
Тип:
Banana Plug
Цвет:
Красный
