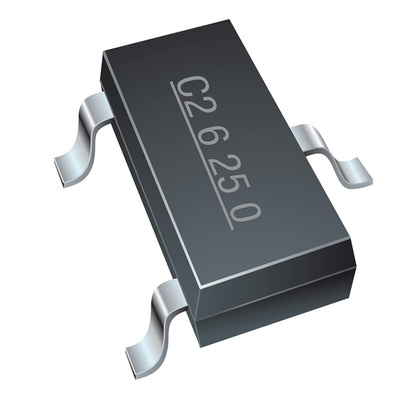

Bourns CDSOT23-T24CAN-Q, Dual-Element Bi-Directional TVS Diode Array, 3-Pin SOT-23, Диод

The Model CDSOT23-T24CAN-Q device is designed to provide ESD and surge protection for CAN transceivers, meeting IEC 61000-4-2 (ESD) and IEC 61000-4-5 (Surge) requirements. The dual TVS array protects both data lines, offers a Working Reverse Voltage of 24 V and a Minimum Breakdown Voltage of 26.2 V and can be used with transceivers with internal circuitry for 24 V power supply miswiring. The low capacitance and low leakage current of the Model CDSOT23-T24CAN-Q minimizes impact on signal integrity and is compatible with high-speed CAN. The SOT-23 packaged device will mount directly onto the industry standard SOT-23 footprint. Its compact size eases layout on compact PCB designs.

Single device for two I/O lines\t
Low\tcapacitance for high-speed CANbus
IEC 61000-4-2 30kV ESD
IEC 61000-4-5 (Level 1,\tCWG 1.2/50)\t\t
500V Surge
High-speed CANbus
Automotive applications
Industrial\tcontrol networks\t
Smart Distribution Systems\t(SDS)\t
DeviceNet™\t
Factory and process automation systems
