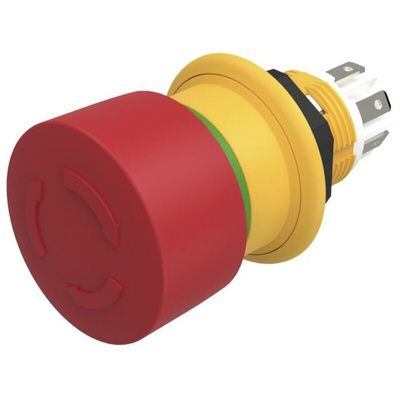

61-6441.4047, EAO Panel Mount E-Stop - Twist to Reset, 16mm Cutout Diameter, 1 NC, Mushroom Head

1702225
Номер производителя: 61-6441.4047Производитель: EAO
Цена за шт.
11088.00 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

EAO Series 61 Low Depth IP67 and IP69K Sealed Emergency Stop Switches

New 16mm mounted 27mm / 40mm diameter head ’foolproof’ Emergency Stop with IP69K protection. Short back panel depth of 21.2mm and low front panel height of 27.5mm with optional dot illumination and up to 3 contacts.

• Emergency stop with red release arrow markings
• Precise foolproof trigger action
• IP69K Sealed product
• Illuminated and non illuminated versions
• 27mm and 40mm Mushroom head
• Compact size 16mm mounting
• Reliable mono-block single piece contruction
• Gold contacts, maximum voltage 50V
• UL listed meet newstandard EN ISO 13850

Electrical Characteristics

• Complies with latest emergency-stop switches standards comply EN IEC 60947-5-1, EN IEC 60947-5-5 (Emergency-stop), EN ISO13850

Environmental Conditions

• Operating temperature -25°C to+55°C
• Storage temperature -40°C to +80°C
• Sealed at the front to IP67 and to IP69K covering submersion and resitance to jetwash

Approvals

Approvals : CE, EN 60947-1, EN 60947-5-5 and EN ISO13850

For applications with high temperature variations or mechanically demanding environments Series 61's modular and flexible design enables swift integration into any control system. This intuitive series is ideal for complex industrial applications.

Machinery
Measurement and control engineering
Process engineering (air conditioning systems and heating technology)
Public transportation
Laboratory instruments
Wide, modular series
Modern design
Range of switching elements and ease of mounting

Техническая спецификация
pdfDatasheet
Вид головки:
Грибовидная
Диаметр выреза:
16мм
Диаметр головки:
27мм
Диапазон:
61 Compact
Кнопочное управление:
Turn Release
Материал кнопки:
Пластик
Метод сброса:
Twist to Reset
Напряжение питания:
50V DC, 50V AC
Нормальное состояние конфигурации:
1 нКл
Освещенный:
Нет
Серия:
61 Compact
Степень защиты IP:
IP67, IP69K
Тип монтажа:
Крепление на панель
Ток питания:
0.2 (ac) A, 0.2 (dc) A
Цвет:
Красный
