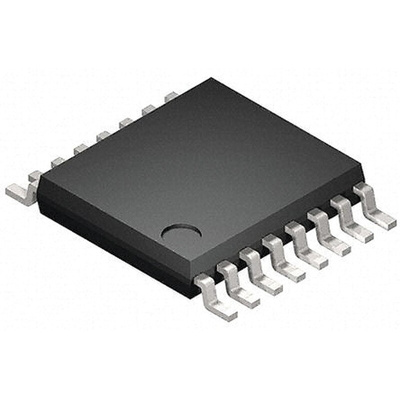

Toshiba 74VHC4053AFT Multiplexer/Demultiplexer Triple -0.5 to 7 V, 16-Pin TSSOP

1713521
Номер производителя: 74VHC4053AFTПроизводитель: Toshiba
Цена за шт. (норма упаковки 25 шт)
99.00 руб. (С НДС) *
Количество 25+ 100+ 500+ 1000+
Цена 99.00 руб. 72.00 руб. 63.00 руб. 48.00 руб.

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

The 74VHC4051AFT, 74VHC4052AFT and 74VHC4053AFT are high-speed, low-voltage drive analog multiplexer/demultiplexers using silicon gate CMOS technology. In 3 V and 5 V systems these can achieve high- speed operation with the low power dissipation that is a feature of CMOS. The 74VHC4051AFT, 74VHC4052AFT and 74VHC4053AFT offer analog/digital signal selection as well as mixed signals. The 74VHC4051AFT has an 8-channel configuration, the 74VHC4052AFT has an 4-channel ´2 configuration, and the 74VHC4053AFT has a 2-channel ´3 configuration. The switches for each channel are turned ON by the control pin digital signals. All control inputs are equipped with a newly developed input protection circuit that avoids the need for a diode on the plus side (forward side from the input to the VCC). As a result, for example, 5.5 V signals can be permitted on the inputs even when the power supply voltage to the circuits is off. As a result of this input power protection, the 74VHC4051AFT, 74VHC4052AFT and 74VHC4053AFT can be used in a variety of applications, including in the system which has two power supplies, and in battery backup circuits

Wide operating temperature range: Topr = -40 to 125 
Low ON-resistance: RON = 45 Ω (typ.) (VCC = 3.0 V)
RON = 24 Ω (typ.) (VCC = 4.5 V)
Low power dissipation: ICC = 2.0 μA (max) (Ta = 25°C)
High noise immunity: VIL = 0.8 V (max) VCC =3.0 V
VIH = 2.0 V (min) VCC =3.0 V
Power down protection is provided on all control inputs

Техническая спецификация
pdfDatasheet
pdfESD Control Selection Guide V1
Автомобильный стандарт:
AEC-Q100
Количество контактов:
16
Рабочая температура - максимальная:
+125 °C
Рабочая температура - минимальная:
-40 °C
Размеры:
5 x 4.4 x 1мм
Тип монтажа:
Поверхностное крепление
Тип упаковки:
TSSOP
