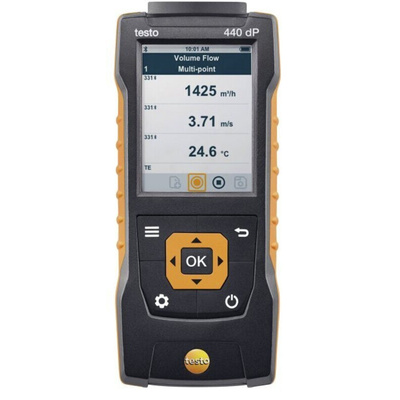

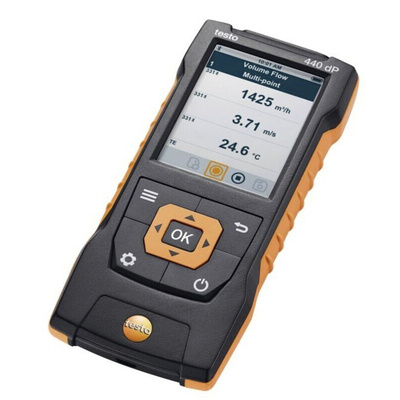

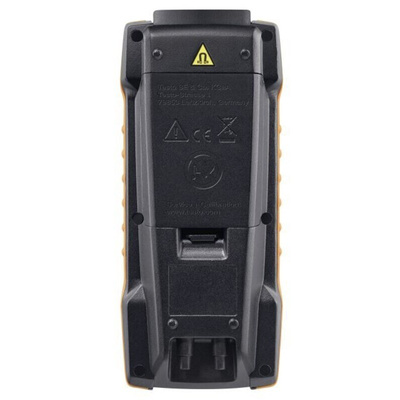

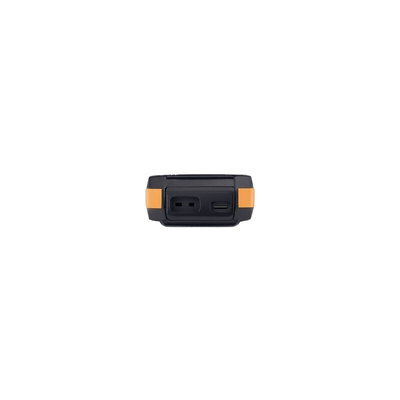

0560 4402, Testo Testo 440 Data Logging Air Quality Monitor, Battery-powered

1765583
Номер производителя: 0560 4402Производитель: Testo
Цена за шт.
111900.00 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

Testo 440 dP Air Velocity and IAQ Measuring Instrument

Precise, reliable measurement of all air velocity and IAQ parameters with just one measuring instrument: the multifunction measuring instrument features an integrated differential pressure sensor and intuitive operation with clearly structured measurement menus. Adjusting air conditioning and ventilation systems, monitoring air quality or carrying out comfort level measurements – thanks to versatile options for combining with high-quality, digital probes, you are ideally equipped to carry out your measuring task (please order probes separately).

Use the testo 440 dP air velocity and IAQ measuring instrument in combination with the high-quality, digital probes to measure and store all air velocity and IAQ parameters (please order probes separately). Up to 3 probes can be connected simultaneously: a Bluetooth probe, a wired probe and a temperature probe with type K thermocouple connector. Automatic probe detection and clearly structured measurement menus guarantee simple operation and will make your day-to-day work easier.

Features and Benefits

• Intuitive: clearly structured measurement menus for volume flow, K-factor, degree of turbulence, cooling/heating output, mould detection and long-term measurement, such as CO₂
• Wireless: Bluetooth® probes for extra convenience when measuring and less cable clutter in the measuring case (please order probes separately)
• Clear and reliable: large graphic display with parallel display of 3 readings as well as internal data storage and USB port for data export
• Includes a differential pressure sensor: for Pitot tube measurement and monitoring filters
• -150°C to +150°C hPa Differential Pressure (Internal Sensor)

Testo 440 dP Air Velocity and IAQ Measuring Instrument

Advantages of measuring with the testo 440 dP air velocity and IAQ measuring instrument

• Precise and reliable in ducts and at air outlets

• Large range of connectable probes: hot wire and vane probes (Ø 16 mm) for measurements in ducts; large vane probes of Ø 100 mm for measurements at air/ceiling outlets

• Calculate volume flow quickly: in the measurement menu, simply configure the dimensions and geometry of the duct cross-section and see the volume flow displayed on the measuring instrument straight away

• You will even find it easy to carry out measurements in particularly large ducts. This is because the extendable telescope on the hot wire and vane probe (Ø 16 mm) with universal handle can be further extended using the telescope extension – enabling you to attain a total length of 2 metres

• Carry out measurements at air/ceiling outlets effortlessly and without using a ladder. Fit the vane probe (Ø 100 mm) with the extendable telescope with 90° angle and, if necessary, with the telescope extension (both can be ordered separately)

• Use the vane probes in conjunction with the testovent measurement funnels and flow straighteners to test incoming / outgoing air at plate outlets, ventilation grilles and swirl outlets

• Practical Bluetooth interface: use the air velocity probes to measure without having to deal with any bothersome cables, operate the measuring instrument by pressing the button on the handle of the probe, e.g. start or stop a timed mean calculation

• Use the practical magnets to securely attach the multifunction measuring instrument to metal surfaces (e.g. ventilation ducts)

• Long-term monitoring of indoor air quality

• The right probe for your requirements: probes for CO2, CO, air temperature and humidity are available as variants with Bluetooth or with fixed cable

• Easy to use: enter the measurement period and interval in the menu for long-term measurement and track it over the course of the day
Internal memory for up to 7500 measurement protocols

• Turbulence measurement in accordance with EN ISO 7730 / ASHRAE 55

• Attain a high level of accuracy, even at low air velocities, with a turbulence probe

Automatic calculation of draught risk and degree of turbulence in accordance with EN ISO 7730/ASHRAE 55

• For convenient measurements at varying heights, we recommend using our measuring tripod for comfort level measurement. This makes it very easy to position turbulence probes in compliance with the standards

• Range of probes for cleanrooms and laboratories

• Fume cupboard probe for high-precision air velocity measurement on fume cupboards

• Thanks to the low start-up speed of 0.1 m/s, the high-precision vane probe (Ø 100 mm) is ideal for laminar flow measurements in cleanrooms. Available as a variant with Bluetooth or with fixed cable

• High-precision temperature/humidity probe (0636 9771 or 0636 9772) with an accuracy of ±(0.6% RH + 0.7 % of m.v.) in the range 0 to 90% RH for measuring the humidity in cleanrooms

Техническая спецификация
pdfDatasheet
Вес:
250гр
Высота:
154мм
Длина:
32мм
Источник питания:
Батарея
Лучшая точность измерения температуры:
±0.3 (-25 → +74.9 °C) °C, ±0.4 (+75 → +99.9 °C) °C, ±0.4 (-40 → -25.1 °C) °C, ±0.5 %
Максимальная температура:
+1370 (Temperature-TC) °C, +150 (Temperature-NTC) °C
Модель р:
Testo 440
Оборудование - тип:
Air Quality Monitor
Рабочая температура - максимальная:
+50°C
Рабочая температура - минимальная:
-20°C
Разрешение измерения температуры:
0.1°C
Регистрация данных:
Да
Срок службы батареи:
12 ч
Тип батареи:
AA
Ширина:
65мм
