Coder accessories

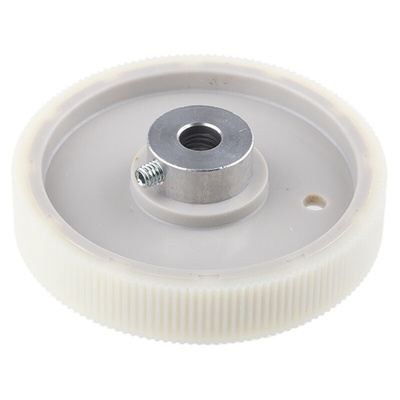

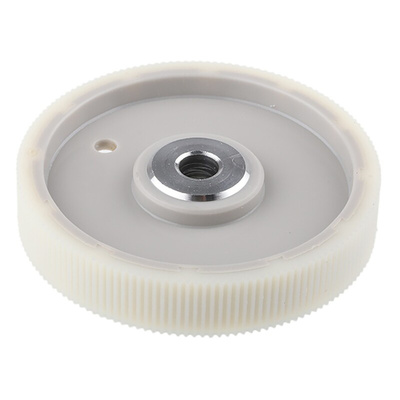

Measuring wheelsConnected to coders, these easily accommodate a movement in materials, speed of movement, etc.
Smooth synthetic, striated synthetic or striated metallic coating.
Development of 20 cm/turn or 50 cm/turn.
Mounting bracket Z 119.017For standard flange coders.
Supplied with 3 no. M3 x 12 screws and 3 lock washers to fix Ø 58 coders with a centring shoulder of Ø 36 mm.
Mounting base Z 119.015For synchro flange coders.
The coder is fitted onto the base using 3 screws and 3 eccentrics which are ordered separately using reference Z 119.018.
Eccentrics Z 119006For synchro flange coders.
3 eccentrics are needed to fit the coder.
| Ref. IVO | type of | width | weight | bore |
| Coating | ||||
| Development 20 cm | ||||
| MR291.07D | Striated synthetic | 12 mm | 135 g | 7 mm |
| MR291.10D | Striated synthetic | 12 mm | 135 g | 10 mm |
| MR241.07D | Smooth synthetic | 12 mm | 135 g | 7 mm |
| MR241.10D | Smooth synthetic | 12 mm | 135 g | 10 mm |
| MR211.07A | Striated metallic | 12 mm | 50 g | 7 mm |
| MR211.10A | Striated metallic | 12 mm | 50 g | 10 mm |
| Development 50 cm | ||||
| MR592.07D | Striated synthetic | 25mm | 260 g | 7 mm |
| MR592.10D | Striated synthetic | 25mm | 260 g | 10 mm |
| MR542.07D | Smooth synthetic | 25mm | 260 g | 7 mm |
| MR542.10D | Smooth synthetic | 25mm | 260 g | 10 mm |
| MR512.07A | Striated metallic | 25mm | 340 g | 7 mm |
| MR512.10A | Striated metallic | 25mm | 340 g | 10 mm |
Push pull interface with inverted signals
Short circuit protection
Age and temperature compensation
Measuring Wheels Data Sheet| Самовывоз со склада г. Екатеринбурга |
