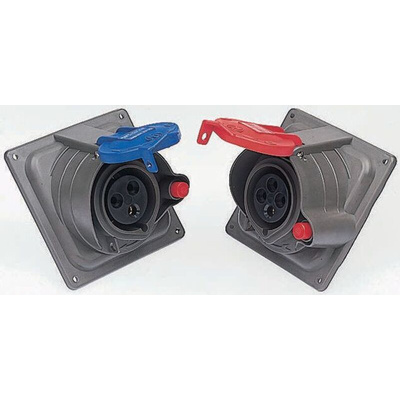

0 529 04, Legrand Right Angle Switchable IP44, IP55 Industrial Interlock Socket 3PN+E, 32A, 415 V, Розетка с блокировкой

2122411
Номер производителя: 0 529 04Производитель: Legrand
Цена за шт.
65970.00 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

Switched Interlocks

Packed with intelligent features, this angled interlocked switched socket is designed for the toughest industrial environments. Manufactured from rugged polyamide 6, the unit achieves an IP55 rating (IP44 with plug inserted) due to an ingenious snap-shut sealing mechanism.

Interlocks can be panel or surface mounted using the back box. For extra safety the units also feature a lock off facility
Terminal capacity is 6mm2 for 16A rated interlocks and 16mm2 for the 32A rated versions

Legrand Range

Flexibility is the key to success of the new Hypra range of industrial plugs and sockets. The wide choice of product formats means that the Hypra range satisfies the demands of most applications.,All plugs and connectors feature an external cable clamp with internal glanding; this affords maximum safety in the wiring, rendering accidental unclamping of the cable impossible, thereby eliminating pulling and stress on the connections. An additional benefit of the internal glanding is that it provides optimum protection against the ingress of water.,Other products in the range boast features including stainless steel external screws, captive terminal screws and nickel plated brass pins and socket tubes. The plastic shielding of active parts is self-extinguishing.,Temperature rating -25 to +40°C.,All products are coded by earth contact position and colour coded for voltage and suitable for 50/60Hz operation.

Техническая спецификация
pdfDatasheet
Глубина:
169мм
Длина:
143мм
Корпус - материал:
Полимер
Номинал тока:
32A
Номинальное напряжение:
415 В
Ориентация корпуса:
Правый угол
Переключаемый:
Да
Размеры:
143 x 143 x 169мм
Разъем/гнездо:
Гнездо
Степень защиты IP:
IP44, IP55
Формат полюса:
3PN+E
Цвет:
Красный
Ширина:
143мм
