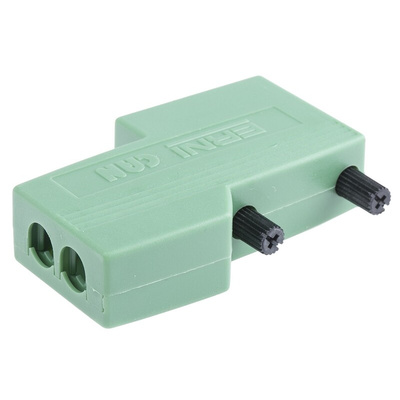

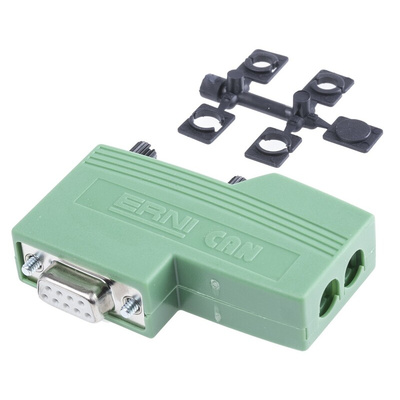

103643, ERNI ERbic Profibus 9 Way Right Angle Cable Mount D-sub Connector Socket, Разъем

2428539
Номер производителя: 103643Производитель: ERNI
Цена за шт.
20838.00 руб. (С НДС) *
Количество 25+ 75+ 200+ 400+
Цена 18756.00 руб. 16674.00 руб. 14589.00 руб. 13554.00 руб.

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

Re-wireable Bus Interface Connectors

The compact, high quality 9-way D-sub housings are available in Bus node or Bus termination versions and are colour coded for ease of identification. For CAN-Bus and Profibus systems, service nodes are also available, enabling programming or 'on-line' servicing to take place. Each Interface is supplied with full mounting hardware and assembly instructions.

Available in horizontal or vertical cable outlet versions
Quick and reliable connection via PCB mounted screw terminals
Bus terminations incorporate SMT termination resistors
Colour coded housings enable easy installation and servicing
Safe ESD protection due to fully insulated housings

Note

Connectors have two cable entries. One cable entry can be closed with blanking plate supplied, if necessary.

Supplied with

Reliable strain relief

BUS connectors

Rewireable bus interface connectors suitable for Bitbus, CAN-Bus, Interbus-S (Fieldbus) and Profibus systems. Compact and high quality, the 9-pole sub-D housings are available in bus node or bus termination versions and are colour-coded for easy identification. Service nodes are also available for CAN-Bus and Profibus systems, allowing online programming and repair. Each interface comes with detailed assembly instructions and mounting accessories.

Available in versions with horizontal or vertical cable outlets
Fast and reliable connection via screw terminals on the PCB
Bus terminations include SMT termination resistors
Colour-coded bodies aid installation and repair
Safe ESD protection thanks to fully insulated housings
Supplied with reliable crimp strain relief

Техническая спецификация
pdfERNI Interbus Interface Connector D-Sub 9 Pin Hor/Vert Cable Outlet
Глубина:
47.4мм
Длина:
64.6мм
Кол-во контактов:
9
Концевая заделка:
Винтовой зажим
Материал корпуса:
Термопластик
Ориентация корпуса:
Правый угол
Рабочая температура - максимальная:
+70°C
Рабочая температура - минимальная:
-20.0°C
Размеры:
64.6 x 16 x 47.4мм
Род:
Female
Серия:
ERbic Profibus
Тип монтажа:
Кабельное крепление
Ширина:
16.0мм
